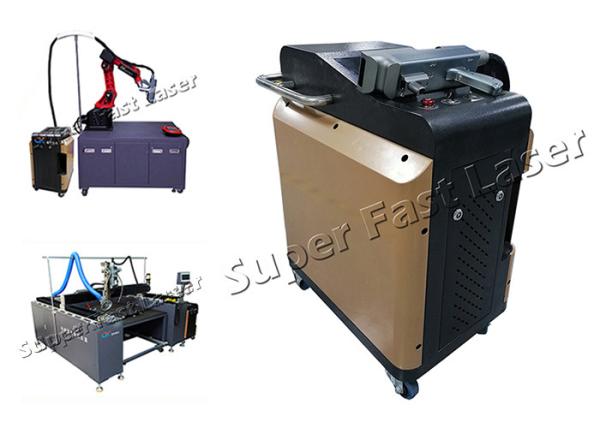

200W Rust Laser Removal Tool

Categories Rust Laser Removal Tool
Brand Name: Super Fast - CK
Model Number: CK-FC-200W
Certification: CE, ISO
Place of Origin: China
MOQ: 1 set
Price: 36000-40000USD/SET
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets/month
Delivery Time: 5-7 days
Packaging Details: Plywood case
Laser type: Fiber laser pulse energy 200W
Laser power: 50W 80W 100W 200W 500W
Trading method: Factory mass production
Customized service: All kinds of automatic laser cleaning equipmemt
Product name: Fiber laser rust removal cleaning machine
Cleaning efficiency: 12-15sqm/hour
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

200W Rust Laser Removal Tool


200W Rust Laser Removal Tool


Based on the metal surface and according to the laser absorption rate of different wavelength of materias, the prior art selection of 1064 nm solid-state lasers or fiber lasers, metal absorption rate of up to 30%, with special mode spot, both can effectively clean rusty, and also protect Base metal with no damage.

Considering the stability of laser, the use of cost and integration methods and other factors, the latest technology using wavelength of 1064nm fiber laser is better than solid lasers, Maxphotoncis 100W pulse laser cleaning source, is the best configuration for hand-held laser cleaning.


Specification List

ItemsParameters
Cleaning Power50W100W200W500W
Current ConsumptionPout = Ponm / 5APout = Ponm / 5APout = Ponm / 5APout = Ponm / 25A
Max. Power400W600W900W6.5KW
Power VoltageAC 110/220VAC 110/220VAC 110/220VAC 110/220V
Cooling MethodAir CoolingAir CoolingAir CoolingWater Cooling
Laser ClassLevel 4Level 4Level 4Level 4
Pulse Energy1.5mJ1.5mJ8mJ30mJ
Fiber Optical Cable5m(Customizable)5m(Customizable)5m(Customizable)7m(Customizable)
Laser Wavelength1064nm1064nm1064nm1064nm
Scan Width1-120mm1-120mm1-120mm1-160mm
Preheat Time10-30s10-30s10-30s10-30s
Working ConditionA flat place without vibration and impactA flat place without vibration and impactA flat place without vibration and impactA flat place without vibration and impact
Working Temperature0-60 ℃0-60 ℃0-60 ℃0-60 ℃
Storage Temperature-10~+60℃-10~+60℃-10~+60℃-10~+60℃
Machine sizeL462 x W 260 x H562 (855mm with pull rod)L647 x W 440 x H859mmL647 x W 440 x H859mmL1100 x W 840 x H1150mm
Net Weight32Kgs70Kgs70Kgs250Kgs

Applications

Apply to1. Metal surface rust removal
2. Paint cleaning
3. Oil stain, contaminant cleaning
4. Coating surface cleaning
5. Welding/Coating surface pre-treatment
6. Stone figure surface dust & attachment cleaning
7. Plastic mold residues cleaning
Industries1. Mould
2. High-end machine tools
3. Ship
4. Vehicle parts
5. Rubber tire
6. Environmental protection industry
7. Printing Industry
8. Road track
9. Microelectronics


Main Features

Features of Super Fast Laser cleaning machine
1) No damage to the base of the material due to the no-touch surface cleaning performance
2) Precise cleaning technic for the specific area in a selected area
3) No need of chemistry or other added supplies
4) Easy to be operated, can be hand-held or auto-cleaned by installing a robotic arm
5) Small cleaning time consumption and comes with a high-quality finishing result
6) Stable and impacted integrated design which results to no extra maintenance

Dear Friend,
The laser cleaning machine is a popular and brand-new laser cleaning mode pioneer.Its biggest advantages are environmental protection.It will replace the traditional and not environmental modes finally.

Super Fast Laser focuses on high-level quality products and do mass production.

Kindly contact us to get more information about the laser cleaning machine!
