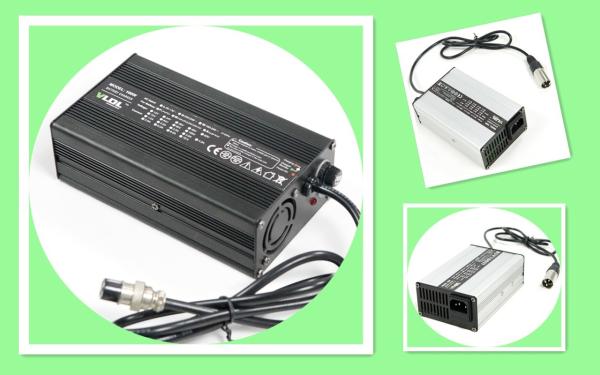

8A 12v Lithium Ion Battery Charger With Intelligent 4 Steps Charging

8A 12v ithium Ion Battery Charger With Intelligent 4 Steps Charging

Smart 12V 8A Lithium Battery Charger, small aluminum with max 14.6V CC CV charging​

Brief introduction:

Universal 90~264Vac input voltage.

12V 8A rated output Smart Battery Charger.

14.4V / 14.6 / 14.7V customized max charging voltage for LiFePO4, Li-ion batteries.

Aluminum Black or Silver color case.

Micro-processor controlled and intelligent 4 steps charging.

85%high efficiency.

2 years warranty, high quality.

Spcifications:
Item No.: VL1208L
Dimension: 155*90*50mm.
Gross weight: 0.9kg.
Input voltage: wide 90~264Vac.
Output rated: 12Vdc 8Amps.
Max charging: customized 14.4V / 14.6V / 14.7V
Applied to battery Types: 12V Lithium-ion, LiFePO4, LiMnO2 battery.
Smart Charging: Auto. CC, CV, Floating or Cut-off.

Factory Pictures:

Battery Charger Knowledge

Q. What charger should I choose?
A. It depends on the type of battery, the capacity of the battery, the application and how much you are prepared to spend. Just tell us your battery information, DANL battery charger engineer will recommend the most suitable charger for you or customized by your batteries and applications.

Q. Can I charge several batteries in parallel?
A. The charger has no problem whatsoever of charging or maintaining several batteries, as long as they are connected in parallel. The charger sees the parallel connected batteries as one large battery. The sum of the capacity has to be below the recommendation for your model. Please note that there could be a high current between batteries when they are connected together, i.e. use high quality wiring.

Q. Can you really connect and then forget about the charger?
A. That depends on your batteries state and charger’s type. Danl lead-acid battery chargers have maintenance mode(floating mode), charger charges with very small current at this mode, so you can forget about the charger but not exceed 24 hours. If your battery is lithium type and without BMS system, please don’t forget the charger.

About Us

Found in 2008 as Guangzhou Chuxin Import & Export Co., Ltd.

We have other two companies:

Danl New Energy Co., Limited (Hong Kong)

Guangzhou Danl Technology Co., LTD

15 years experience of designing and manufacturing switching-mode technology battery chargers.

10 years experience of exporting to USA, Euro countries and worldwide.

Specializing in customizing Smart Battery Chargers for battery & EV factories or wholesalers worldwide and providing high quality ODM & OEM service and charging solution.

Main Products Classified By Battery Type:

• Lithium Battery Chargers For LiFePO4, Li-ion, Li-polymer, LiMOn2 Batteries.
• Lead-Acid Battery Chargers For SLA, Deep cycle, Silicon and AGM Batteries.

Main Products Classified By EV Type:

E-Tool Battery Charger, E-Bike Battery Charger, E-Skateboard Battery Charger, E-Scooter Battery Charger, E-Motorcycle Battery Charger, E-Lawnmower Battery Charger, E-Golfcart Battery Charger, E-Floor Sweeper Battery Charger, AGV Battery Charger, E-Forklift Battery Charger, E-Car Battery Charger.

Battery Charger Main Output Power:

50W, 60W, 80W, 90W, 120W, 180W, 240W, 360W, 600W, 900W, 1000W, 1200W, 1500W, 2000W, 2500W.

Output Voltage & Current:

4.2V, 6V, 12V, 24V, 36V, 48V, 60V, 72V, 84V, 96V...188V with various charging currents from 0.5 amps to 100 amps.

As a smart battery chargers manufacturer, factory and wholesaler, Danl promises that we only supply high quality product, no cheap components, no struggling warranty policy, we guarantee 2 Years Full Warranty Policy and Free Replacement. Proud of our quality and best after service!
