| Categories | Cabinet Door Locks |
|---|---|
| Brand Name: | KERONG |
| Model Number: | KR-S1408 |
| Certification: | CE/RoSH/FCC |
| Place of Origin: | China |
| MOQ: | 1 piece |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal |
| Supply Ability: | 50,000 pieces per month |
| Delivery Time: | 5-15 days working time |
| Packaging Details: | The material of Package: K=K Reinforcement Carton;Carton:50 PCS/CTN or customize according to customers' requirements |
| Product Name: | Industrial Switch Box Lock |
| Model: | KR-S1408 |
| Key Material: | SUS430 |
| Working Voltage & Current: | DC 12V~24V ; 2.4A/1.2A |
| Size: | 72.5*59*13 mm |
| Working Temperature: | -20℃ ~ +60℃ |
| Test: | Salt spray testing 48 hours |
| Application: | Storage cabinet; gym locker; logistics locker |
| Free samples: | ≤3 pcs |
2.4A Magnetic Cabinet Door Locks , 24V Magnetic Door Lock

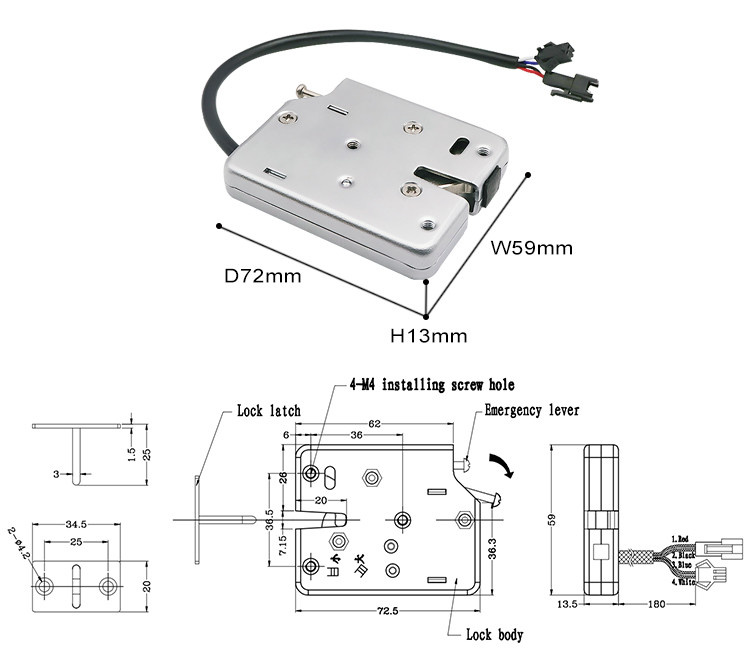

Product parameters:
| Model | KR-S1408 |
| Size | 72.5*59*13 mm |
| Name | Industrial Switch Box Lock |
| Weight with lock hook | 176g |
| The material of lock body | SUS430 |
| The material of lock bolt | Zinc alloy nickel plating |
| Working voltage | DC12V~DC24V |
| Working current | 2.4A/1.2A |
| Maximum power | 28W |
| Response time | Less than 20ms |
| Working temperature | -20℃ ~ +60℃ |
| Working humidity | 5% ~ 85%RH |
| Working life | 500,000 times |
| Door weight | 0.5KG~10KG |
| Test | Salt spray testing 48 hours |
| Usage | storage cabinet; express locker; electricity meter box |
| Certification | CE; FCC; RoHS |
| OEM | Accepted |
Product Main Features:
1. The lock case is made of low carbon stainless steel, anti-force performance is 250kgs.
2. With push lever to help push the door open, Lock hook detection function.
3. Omron detective switch from Japan, 500,000-time working life.
4. Support 12V & 24V, solenoid is drove.
5. With mechanical emergency lever, can be unlocked manually in the event of power outage.
6. AWG24 wires with PVC tube protects the wirings.
7. Connectors and wires can be customized based on actual conditions.
Product Details
Hook Model
| Model | Base | Thickness | Height | Weight |
| A | Flat | 3.0mm | 30mm | 11.0g |
| B | Flat | 3.0mm | 25mm | 10.5g |
| C | Arch | 3.0mm | 26.5mm | 10.8g |
| D | Arch | 3.5mm | 26.5mm | 11.8g |
| E | Arch | 3.0mm | 31.5mm | 11.4g |
| F | Arch | 3.0mm | 26.5mm | 10.5g |
| G | Arch | 3.5mm | 30mm | 11.0g |
Product Applications
Our products KR-S1408 electronic cabinet lock DC 24v is used in parcel cabinets, vending kiosk locker, centralized control ark express cabinets, postal cabinets, storage cabinets, etc.
