PCD Series Pneumatic Conveying Dryer Suitable For Heat Sensitive Material

PCD Series Pneumatic Conveying Dryer Suitable For Heat Sensitive Material

Pneumatic Conveying Dryer is also called instant drying. It is used in pharmaceutical industry, chemical industry from 1960 at home. Our factory follow up the advanced technology at abroad, produceseies air for home customer. The main products are divided into three series: QG, FG and GFF.

PCD Pneumatic Conveying Dryer Features

1. Powerful drying. Little invest and the amount of evaporated moisture is high ( from 50kgH2O/h to 2000kgH2O/h)

2. The drying time is short. The series is suitable in strong heat sensitive materials. The finished product is seperated from outside, and no pollution with high quality.

3. The equipment is a total set, the heat source can be shoose from steam, coal fuel, oil fuel and gas fuel hot air furnace.

PCD Pneumatic Conveying Dryer Application

Ceramic industry: Kaolin, bentonite, clay, etc.

Foodstuff industry: Soybean protein, gelatinized starch, vinasse, triticum, wheat starch, etc.

Organics: Atrazine, lauric acid cadmium, benzoic acid, sodium oxalate, acetyl cellulose, etc.

Dyestuff: Anthraquinones, black iron oxide, indigo dye, butyrate, titanium oxide, zinc sulfide, various azo dye intermediates, etc.

Inorganic: Borax, calcium carbonate, hydrogen peroxide, etc.

Substance: Copper suifate, ferrix oxide, three antimony oxide, all kinds of metal salt, synthetic cryolite, etc

PCD Pneumatic Conveying Dryer Technical Parameters

Type	Moisture(kg/h)	Equipped power(kw)	Occupied area(m2)	Height(m)
PCD50	50	7	16	9
PCD100	100	13	26	11
PCD200	200	21	35	11
PCD250	250	24	51	13
PCD500	500	43	78	13
PCD1000	1000	100	105	15
PCD1500	1500	150	200	16

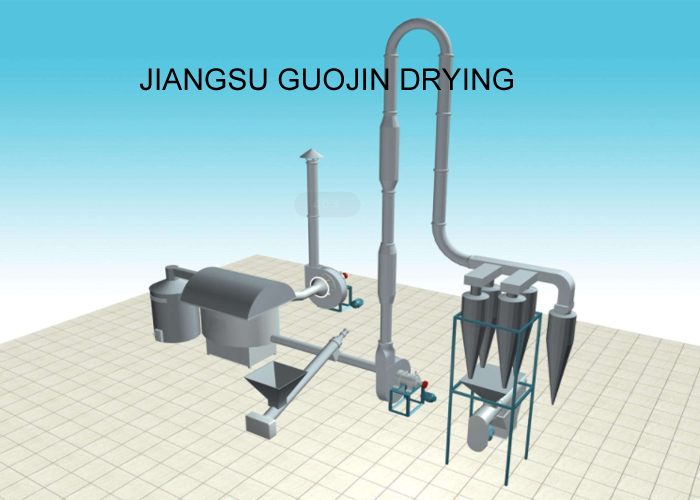

Sketch of Structure

PCD Pneumatic Conveying Dryer Show
