Liangshan 30000l-60000l Aluminium Fuel Tanker Semi Trailer

Categories Heavy Duty Semi Trailers
Brand Name: HCBZ
Model Number: HCBZ50
Certification: CCC
Place of Origin: Shandong, China
MOQ: 1 unit
Price: USD 25000/UNIT
Payment Terms: L/C, T/T
Supply Ability: 500 UNIT/MONTH
Delivery Time: 35-45 DAYS
Packaging Details: NUDE PACKING WITH WAX
Material: steel or aluminum
Compartments: 1-9
Axles: 13 - 20tons BPW or FUWA Axles
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

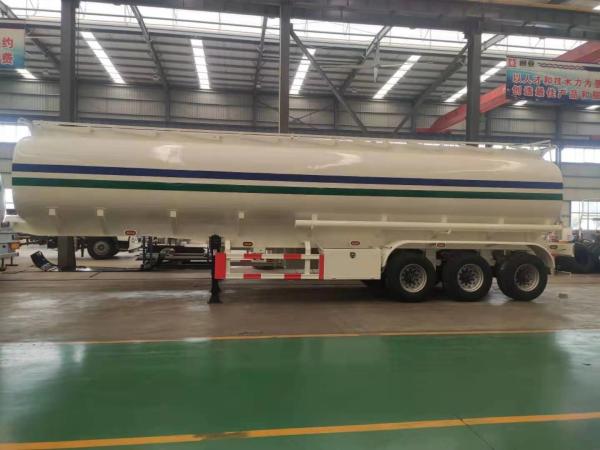

Liangshan 30000l-60000l Aluminium Fuel Tanker Semi Trailer

LIANGSHAN TRAILER 30000l-60000L ALUMINIUM FUEL TANKER SEMI TRAILER FOR SALE


Oil transport semi-trailer is mainly used for large oil material, liquid asphalt transportation, tonnage generally at about 40 to 60 cubic. Oil transport semi-trailer usually are: two bridge semi-trailer and three bridge semi trailer. Oil transport semi-trailer tank material most used Q235 carbon steel, stainless steel or aluminum alloy materials, built-in multichannel enhanced wave partition plate of tank, clapboard bottom hole, to relieve the impact of the fuel spillage within the tank and improve the strength of the tanks. Combination opening is located at the top of the tank, large cover with a self-locking small cover, upper cover is breathing valve installation, to ensure that the tank inside and outside air pressure is consistent; With electrostatic grounding line. Can choose to install oil pumping system, by taking power through transmission side force, can be self-priming since the row; Bring two root sucker pipe, is equipped with quick release coupling, suction six meters. Two fire extinguishers and special tools. Oil transport semi-trailer is divided into two parts, the oil tanks and tanks supporting frame or bracket.


30000- 60000 Liters Fuel Tanker Trailer
Bulk Body
ShapeElliptical, circular type shape
Dimension9500-13000*2500*3900mm ( can be customized )
Payload28T - 70tons
Volume28000liter - 70000liter
Compartments1-9
Tanker body5mm or 6mm/Carbon steel plate/ Aluminum alloy
ManholeDiameter 500mm, 1-9 pieces with vent valve
Discharge vale4" API Adaptor Valve or 3" Spherical Valve
Bottom valve3", 4" Control by Pneumatic Block
HandrailManual, Pneumatic
Bottom Loading (Optional)Overfilling, Recovery system
Cat WalkAluminum
Discharging hoseRubber tube, 2 pieces, 6 m each
Chassis
Main BeamQ345 Carbon steel material
Axles2 - 4 pcs 13 - 20tons BPW or FUWA Axles
SuspensionMechanical, Air bag
Landing LegJOST E100
Brake system6pcs T30/30 Brake Chambers, WABCO relay valve
Tire12R22.5, 315/80R22.5, 12.00R24 Triangle Brand
King PinJOST 2" or 3.5 " Bolting Type
