| Categories | Heavy Duty Semi Trailer |
|---|---|
| Brand Name: | HARVEST |
| Model Number: | HARVEST |
| Certification: | CE/DOT/ADR |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 units/month |
| Delivery Time: | 15 days |
| Packaging Details: | nude package |
| Max Payload:: | 60 Tons |
| Axle:: | 13/16 Ton Fuwa/BPW/CIMC |
| Suspension System:: | Mechanical Spring + Air Suspension System |
| Tire:: | 11.00r20 12r22.5 |
| Suspension:: | Mechanical Suspension |
| Material:: | Steel |
| Size:: | 13600*2670*3280mm |
| King Pin:: | 3.5"(90mm) JOST |
| Company Info. |
| Henan Harvest Machinery & Truck Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
4 Axle 3 Axle Stake Fence Trailer Cargo truckMultipurpose Semi Trailer
We are the top professional semi-trailer supplier,
We can provide you with better products and more favorable prices.
Same quality to price, same price to quality
welcome to come contact us get good price.
4 Axle 3 axle stake fence trailer specification Parameter configuration
| DIMENSIONS | |||||||
| TARE weight | 9400kg | Payload | 60000kg | ||||
| Overall length | 13600mm | Overall width | 2670mm | Overall height | 3280mm | ||
| SPECIFICATION | ||||||
| Chassis | Heavy duty and extra durability I beam; opting for high tensile steel Q345,welding by automatic submerged-arc processes; Top flange 14mm,width 140mm;middle flange 8mm; bottom flange 16mm,width 140mm | |||||
| axle | number | 3 | brand | FUWA | capacity | 13T |
| suspension | Mechanical suspension or air suspension | |||||
| Leaf spring | 90mm×13mm×10 | |||||
| floor | Checkered plate ,thickness 3mm | |||||
| Side wall | 600mm | |||||
| tire | 12R22.5 | |||||
| King pin | 3.5’ bolt-in type | |||||
| Landing gear | JOST E100 | |||||
| Braking system | WABCO RE6 relay valve; T30/30 spring brake chamber ;40L air tanks | |||||
| Painting | Complete chassis sand blasting to clean rust ,1 coat of anticorrosive prime,2 coats of final paint | |||||
| Accessories | One standard tool box | |||||

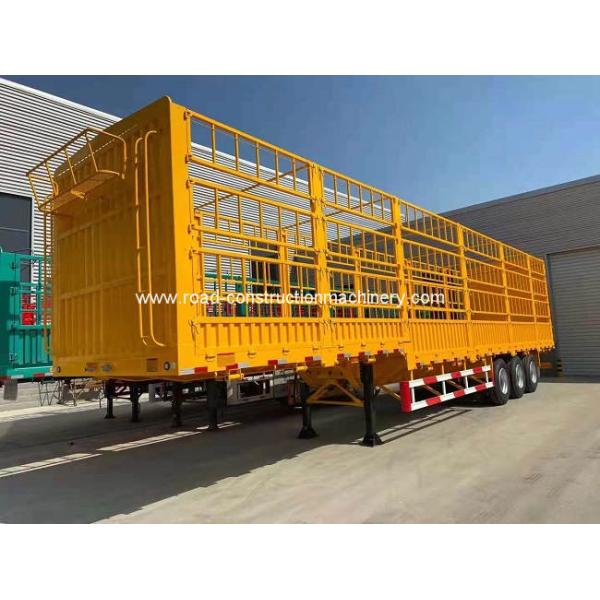

4 Axle 3 axle stake fence trailer picture
|
