SDLG ER616F Heavy Construction Machinery 1 Ton Mini Excavator

Categories Heavy Construction Machinery
Brand Name: SDLG
Model Number: ER616F
Certification: CE
Place of Origin: Shandong, China
MOQ: 1 unit
Price: USD 14000-USD 18000
Payment Terms: L/C, T/T
Supply Ability: 500 UNIT/MONTH
Delivery Time: 30-45 DAYS
Packaging Details: NUDE PACKING WITH WAX
Overall weight: 1880kg
Bucket capacity: 0.04m3
Max. excavation force: 15Kn
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

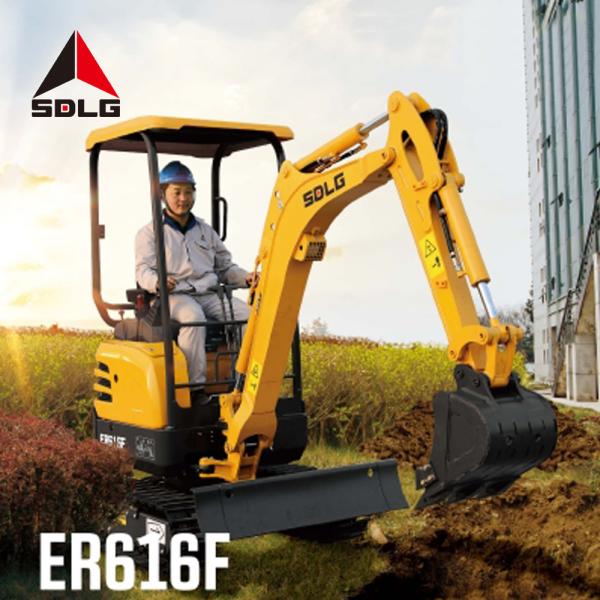

SDLG ER616F Heavy Construction Machinery 1 Ton Mini Excavator

SDLG ER616F construction machinery mini excavator 1 ton micro excavator for sale


ER616F is a small tailless excavator which is newly designed by SDLG and is applicable for a variety of working conditions. The product integrates energy saving, reliability and comfort, features flexible operation and low noise, and is widely used in construction site, landscape engineering, municipal construction, cities and towns construction and other narrow occasions.


Overall dimension
Overall width of upper assembly2375mm
Overall width970(1240)mm
Overall height2375mm
Tail swing radius620mm
Overall height of engine hood1150mm
Ground clearance of counterweight453mm
Wheelbase1230mm
Crawler length1585mm
Crawler gauge730mm
Crawler pad width400mm
Min. ground clearance145mm
Overall length5930mm
Overall height of boom1190mm
Overall parameters
Bucket capacity0.04m³
Overall operating weight1880kg
Max. excavation force15KN
Slew speed9.2r/min
Traveling speed (low/high)2/4km/h
Average ground pressure33kPa
Max. digging radius3910mm
Max. digging depth2290mm
Max. digging height3505mm
Max. dumping height2490mm
Min. front slewing radius1490mm
Engine
ModelD782
TypeWater-cooled, Four-stroke,inline
Rated Power@Revolution Speed9.8kW
Displacement778mL
Cylinder bore × stroke67*73.6mm
Emission standardGB20891-2014 China Phase III
Rated fuel consumption253g/kw.h
Max. torque191.8-208.6N.m
Traveling/swing system
Qty. of carrier rollers (single side)/
Qty. of track rollers (single side)3
Traveling brake typeWet disc brake
Swing modeHydraulic drive internal tooth
single-row ball-bearing
Swing brake typeWet disc brake
Hydraulic system
Hydraulic control typePilot proportional control valve
Hydraulic system typeThree pump throttling system
Max. flow53
Operating pressure220kgf/cm2
Fill capacity
Fuel15L
Engine oil3.8L
Hydraulic oil20L
Antifreeze3L


Quality SDLG ER616F Heavy Construction Machinery 1 Ton Mini Excavator for sale
