40km 1270nm 1330nm WDM 10G BIDI SFP Module

Categories 10G SFP+ Module
Brand Name: YXFiber
Model Number: YXF-PP-B23L-40D/YXF-PP-B32L-40D
Certification: CE RoHS FCC
Place of Origin: Hubei, China
MOQ: 1pcs
Price: $30.00~$32/PAIR
Payment Terms: T/T, L/C
Supply Ability: 100000pcs per month
Delivery Time: 1~3working days after payment
Packaging Details: 10pcs in Plastic tray
Type: Fiber Optic Transceivers
No. of Fiber: 1.
Use: FTTX
Supply Voltage: 3.3V
Power: 5~1dBm
Data rate: 10G
Wavelength: 1270nm/1330nm
Transmission distance: 40km
Interface: BIDI LC
Fiber Type: SMF
DDMI: Yes
Warranty: 1 Year
Selling Units: Single item
Single package size : 22X5X6 cm
Single gross weight: 0.100 kg
Package Type: 10pcs/ anti-static box.
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

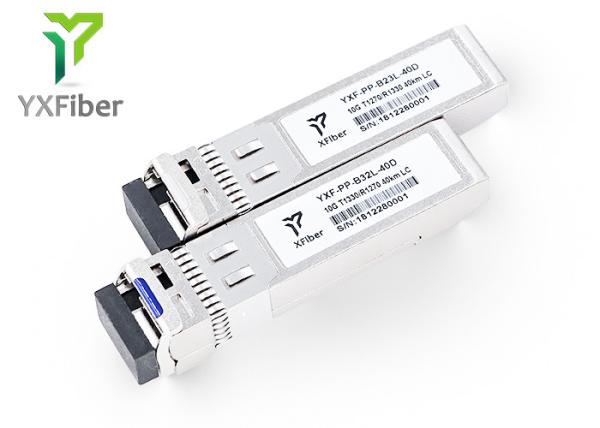

40km 1270nm 1330nm WDM 10G BIDI SFP Module

WDM SFP+ 10G BIDI 40km 1270/1330nm LC SM DDM 10g SFP Transceiver
Technical ParametersDescriptionsTechnical ParametersDescriptions
Model Number

YXF-PP-B23L-40D,

YXF-PP-B32L-40D

InterfaceLC
Fiber typeSMFLaser/DetectorDFB/PIN
Form FactorWDM/bidi SFPDDMYes
Data Rate10GbpsOutput Power5~1dBm
WavelengthTx1270/Rx1310nm, Tx1310/Rx1270nmPower Supply3.3V
Distance40KMTemperature0~70°C
Sensitivity<-15.0dBmCertificateCE,ROHS,FCC,ISO9001
Selling Units1 PairWarranty1Year

The YXF-PP-B23L-40D & YXF-PP-B32L-40D series single mode transceiver is small form factor pluggable module for duplex optical data communications defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.

The YXF-PP-B23L-40D module is designed for single mode fiber and operates at a nominal wavelength of 1270nm; YXF-PP-B32L-40D module is designed for single mode fiber and operates at a nominal wavelength of 1330nm. The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.

The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
