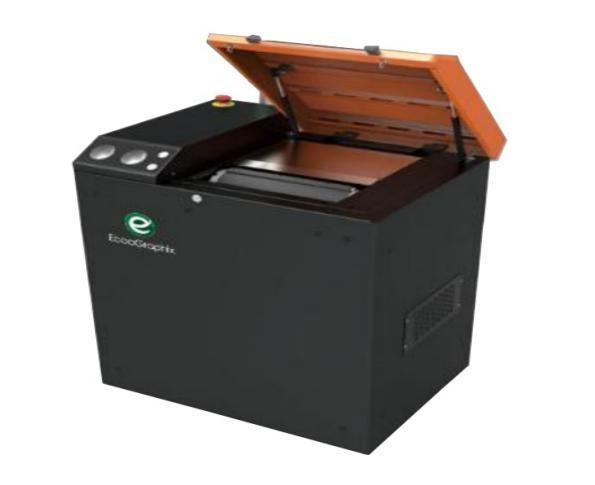

A3 430x330mm Multi Functional CTP Flexo Plate Making Machine

A3 430x330mm Multi Functional CTP Flexo Plate Making Machine

1. Application

EcooGraphix Flexo CTP System - Precision Solutions for Modern Flexographic Printing

The EcooGraphix Flexo CTP Machine represents the cutting edge in flexographic plate production technology, specifically engineered to meet the demanding requirements of:

• 1. High-quality label printing

• 2. Premium trademark reproduction

• 3. Sophisticated packaging applications

Advanced Plate Compatibility:
Our system supports the full spectrum of modern flexographic plate technologies, including:

1. Heat-sensitive Corrosive Film Plates - For exceptional fine line and halftone reproduction

2. Digital Relief Plates (Water-washable) - Environmentally conscious solution with easy processing

3. Digital Flexo Plates - Available in both:

   • Water-washable formulations

   • Solvent-based versions for specific application needs

4. Thermal PS Plates - Delivering superior print consistency and durability

Technical Superiority:

• Industry-leading imaging precision for sharp dots and smooth gradients

• Optimized exposure parameters for each plate type

• Consistent, repeatable results across production runs

• Energy-efficient operation with minimal waste

Application Versatility:
Ideal for converters and printers serving:

• Pharmaceutical and cosmetic labels

• Food and beverage packaging

• Industrial and durable goods labeling

• Security and specialty printing applications

2. Characteristic

EcooGraphix CTP System - Key Features

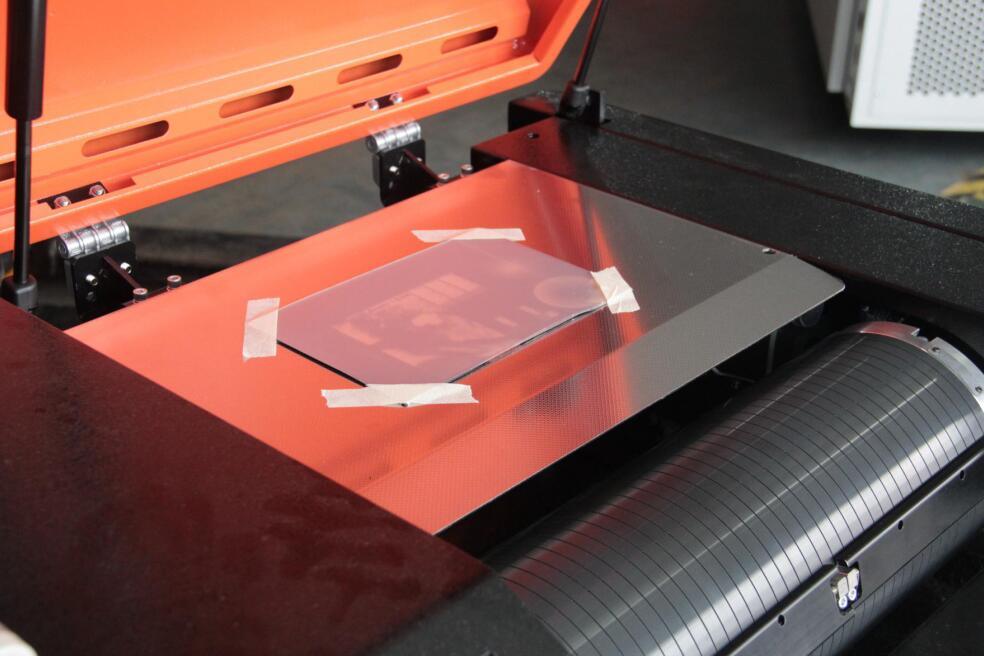

1. Intuitive Operation

   • One-touch plate loading system

   • Complete plate loading process within seconds

   • Simplified workflow minimizes operator training requirements

   •


2. Smart Focusing Technology

   • Wide thickness compatibility: 0.15mm to 1.7mm

   • Dynamic autofocus system maintains precision

   • Consistent sharp dot reproduction throughout production

   •

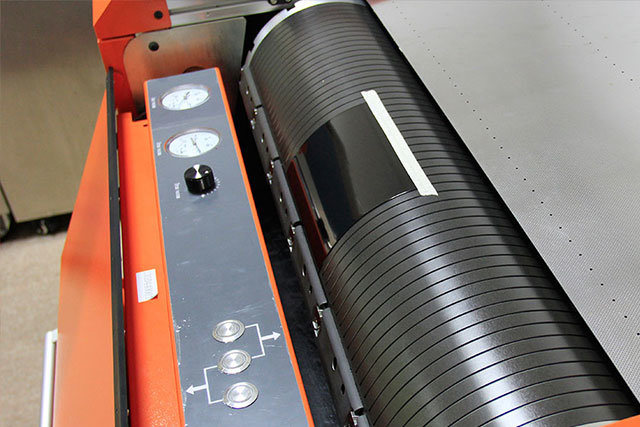

3. High-Speed Drum Balancing

   • Automatic balance adjustment in ≤5 seconds

   • Ensures stable rotation at maximum operating speeds

   • Vibration-free performance for perfect imaging quality

   •


4. Fault-Tolerant Laser System

   • Automatic channel switching during laser failure

   • Continuous production using longest available channel

   • Maximizes uptime and production efficiency

   •


5. Advanced Drive System

   • Linear motor technology provides:

     • Superior positioning accuracy

     • Simplified mechanical design

     • Enhanced long-term reliability

     •


6. Durable Performance

• Laser system rated for >10,000 hours operation

  • Extended warranty on critical components

  • Low maintenance design reduces downtime

3. Specification

4. Major Highlights

ⅠSuperior dot quality reproduction proven by worldwide market:

1%-99% dot reproduction Up to 250lpi screening, 4000dpi resolution.

Ⅱ Robustness and simplicity: robust machine and easy to use. User friendly and simple design to avoid human error.

Ⅲ Worldwide top class components and parts supplied by international well known suppliers from Japan, USA and Germany.

Ⅳ Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours. (approximately 20,0000 plates)

Ⅴ Long warranty of the machine: 3 years warranty (free replacement of all parts)

Low Cost of Parts: after 3 year warranty, very low cost of parts. For example, laser diode at US$250 per piece.

Ⅵ Guaranteed Service: Installation and training conducted by technical engineer from factory, ensuring best setup and training to be achieved. Regular remote maintenance to be conducted every 2 months. Proactively revisit by engineers to be conducted. 7x24 hours service response.

Ⅶ Proven Worldwide market leader:

Over 6000 units installed worldwide over past 10 years.

USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer.

Turkey: 35 units installed in Turkey by Esen Graphics.

Ⅷ Installations in other countries: UK, Italy, Spain, Hungary, Russia, Mexico, Brazil, Colombia, Ecuador, South Africa, Nigeria and etc.

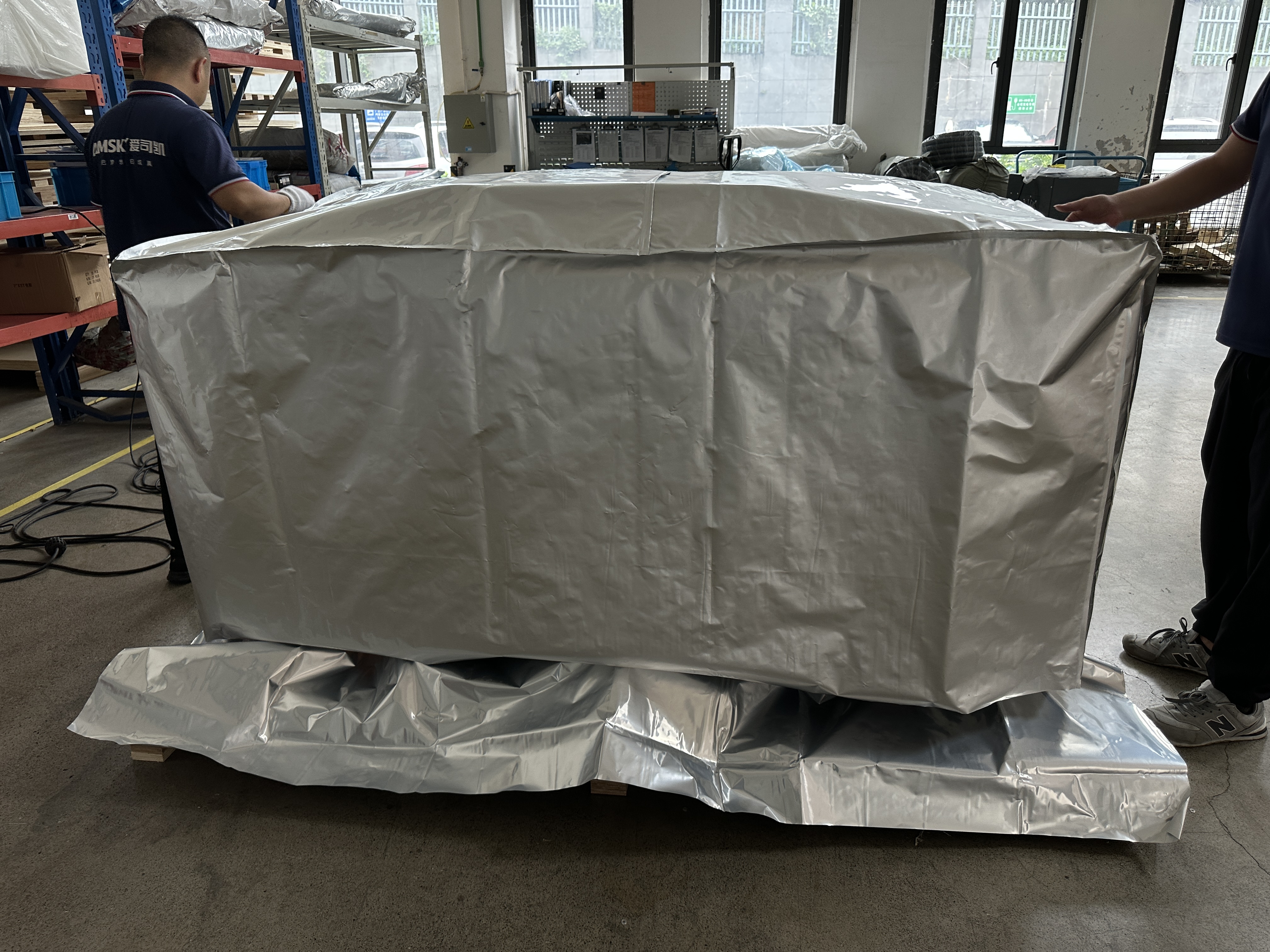

5. Producing And Packaging

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

6. Certifications

7. FAQ

Q1: What are your main products?

A: We specialize in prepress equipment and consumables, including:

• 4-up & 8-up Thermal CTP/CTCP/VLF CTP (Online/Offline)

• Flexo CTP Systems

• Processors

• Offset Plates, Inks & Printing Blankets

• Postpress Packaging Equipment

We provide complete prepress solutions—equipment, consumables, and reliable after-sales support—all from a single source.

Q2: Where is your factory located?

A: Our manufacturing facility is in Hangzhou, just 1.5 hours by train from Shanghai. You’re welcome to visit us for a firsthand look at our production and quality control processes.

Q3: Do your CTP machines have certifications?

A: Yes, all our CTP machines are CE and SGS certified, ensuring compliance with international safety and performance standards.

Q4: Can you supply workflow and RIP software?

A: Absolutely. We offer the Brainnew Workflow and Compose V12 RIP for seamless prepress integration.

Q5: What about installation and after-sales support?

A: 1. Installation & Training: Our engineers will assist with setup and provide comprehensive training. The buyer covers round-trip airfare, service fees, and local accommodation.

• 2. 24/7 Support: Remote assistance is available anytime. For global clients, we combine remote troubleshooting with onsite visits when needed.

• 3. Proven Reliability: Many printers worldwide operate our CTP systems with full satisfaction, thanks to:

  • Robust machine quality

  • Seamless remote/onsite service

  • Thorough training & maintenance

Purchasing directly from EcooGraphix China guarantees hassle-free installation, training, and lifelong technical support.
