| Categories | LED Landscape Spot Lights |
|---|---|
| Brand Name: | COMI LIGHTING |
| Model Number: | B3QCB0658 |
| Certification: | CE ROSH |
| Place of Origin: | China |
| MOQ: | 1 psc |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100,000PCS/MONTH |
| Delivery Time: | 5-8 working days |
| Packaging Details: | 1piece/Box |
| Input voltage: | 24Vdc or 220-240Vac (110-120Vac is available). |
| LED: | 6x3W/4W |
| Color: | Single color /RGB (3-in-1)/RGBW(4-in-1). |
| Pole length: | Extended pole 300/500/800mm/1000mm |
| Light distributions: | narrow spot, spot, flood, wide flood, extra wide flood or wall-wash. |
| Dimming or controllable: | 0/1-10V, DALI, DMX 512, TRIAC |
| lamp body color: | silver grey and black. |
| Housing and spike material: | Die-cast aluminum |
| IP Rate: | IP65 grade, Dust-tight and water jet-proof |
| Warranty: | 3 years |
| Company Info. |
| COMI LIGHTING LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

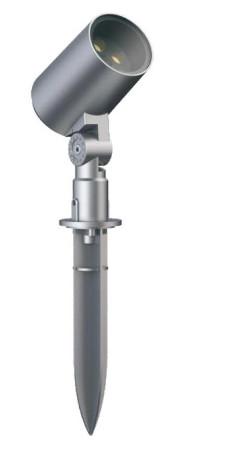

3QB-series product is a high power LED architectural & landscape
spot light with small size which is discreet and place the focus on
the light itself and particularly advantageous in compact room
situations. This 3QB-series product not only provides standard arm
with optional round base or with ground spike, but also offers
extensive mounting accessories enables the luminaire to install in
a wide variety of outdoor applications. single color, RGB or RGBW
color are available. The product is optional non-dimmable, PWM,
0/1-10V, DALI, TRIAC dimmable or DMX512 support. IP65 designed is
ideal solutions for outdoor applications.
Features and benefits:
▪ Small luminaire is discreet and place the focus on the light
itself which particularly advantageous in compact room situations.
▪ Standard concealed cable type round base or spike:
(1) Round base for wall, ground or ceiling surface mounting.
(2) Ground spike for ground mounting.
▪ Light distributions: narrow spot, spot, flood, wide flood, extra
wide flood or wall-wash.
▪ Optional light accessories for soft light: honey comb louver,
honeycomb glass and filter.
▪ Optional lamp body color: grey and black.
▪ With optional other extensive mounting accessories enables the
luminaire to install in a wide variety of outdoor applications.
(1) Screw fixed pole mounting Bracket;
(2) Mounting Bracket with stainless steel tree strap;
(3) Extended pole(300/500/800/1000mm) with round base (fixed by
screws) or spike.
▪ Multiple direction adjustable for projection direction.
▪ Standard input voltage is 24Vdc or 220-240Vac (110-120Vac is
available).
▪ Die-cast aluminum lamp housing and spike.
▪ Optional 0/1-10V, DALI, DMX 512, TRIAC dimming or controllable
support.
▪ IP65 grade, Dust-tight and water jet-proof.
▪ 3 years warranty (5 years warranty is available upon request).
Material Specifications:
| Housing | 12 Die-casting grey or black powder coated aluminum. T=50-55μm . Adhesion of ISO class 1/ASTM class 4B |
| Light Window | Clear Temper glass. |
| Lens | Optical lens, efficiency≥90% |
| LED | CREE, OSRAM, EPISTAR and etc LED |
| PCB | Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
| LED Driver | Integrated LED driver with Constant current output |
| Power Cable | ▪ 0.5meters H05RN-F 2-core*1.0mm² to open wires (Low voltage) ▪ 0.5meters H05RN-F 3-core*0.75mm² to open wires(High voltage, or Tunable white) ▪ 0.5meters H05RN-F 4-core*0.75mm² to open wires(for RGB) ▪ 0.5meters H05RN-F 5-core*0.50mm² to open wires(for RGBW, or DMX512) |
| Operating Temperature | -20℃~+40℃ |
| Round Base (included) | Aluminum |
| Support | DALI, 0~10V,PWM, DMX512 control support upon request. |
Technical Specifications:
| Item Number | Control Method | Light Source | CRI | Optional Beam Angle(°) | Input Voltage | Typical Power | Typical Luminous Flux(lm) | IK Rate |
| B3QCB0658 | ON/OFF | 6×3W CREE LEDSingle Color | Ra>80 | 6°, 12°, 25°,40°, 60° | 24VDC 110-120VAC220-240VAC | 24V=11.6 110V=12.8240V=12.8 | Cool White=861 Warm White=696 | IK06 |
| B3QCB0618 | PWM | 6×3W RGB 3-in-1Full Color | / | 6°, 12°, 25°,40°, 60° | 24VDC | 12.6 | 278 | IK06 |
| B3QCB0618DMX | DMX | 6×3W RGB 3-in-1Full Color | / | 6°, 12°, 25°,40°, 60° | 24VDC | 12.6 | 278 | IK06 |
| B3QCB0620 | PWM | 6×4W RGBW 4-in-1Full Color | / | 6°, 12°, 25°,40°, 60° | 24VDC | 16.5 | 398 | IK06 |
| B3QCB0620DMX | DMX | 6×4W RGBW 4-in-1Full Color | / | 6°, 12°, 25°,40°, 60° | 24VDC | 16.5 | 398 | IK06 |
| B3QCB0125 | ON/FF | 1×15W CREE COB LEDSingle Color | Ra>80 | 18°, 24°, 38°, 60° | 24VDC 110-120VAC220-240VAC | 24V=18.2 110V=18.2240V=18.2 | Cool White=881 Warm White=706 | IK06 |
Notes:
1. Optional color or Color Temperature for single color:
Very warm white(2200k), Warm White(2700-3000K)/ Neutral
White(4000-4500K)/Cool White(6000-6500K)/Red /Blue /Green and
others.
2. 12VDC working voltage is available;
3. DMX512, TRIAC, PWM, DALI,0/1-10V dimming or controllable support
upon request;
4. Specifications are subjected to change without notice.
Optional Various Optical Accessories for 0/1-10V, DALI,TRIAC,PWM dimming or DMX512 control Mono/ RGB/ RGBW LED Architectural and Landscape Flood / Spotlights:
Optional extensive mounting accessories enables the luminaire to install in a wide variety of outdoor applications:
(2) Round base: for ground/wall/ceiling surface mounting.
(3) Extended pole(300/500/800mm) with round base (fixed by screws)
(4)(5) Ground spike: ground mounting.
(6) Extended pole(300/500/800mm) with ground spike
(7) Mounting Bracket with stainless steel tree strap: for mounted
on tree.
(8) Screw fixed pole mounting Bracket: mounted on pole
|
