50ton Heavy Dump Truck SHACMAN F3000 Dump Truck Trailer 6*4 Driving

Categories Heavy Dump Truck
Brand Name: SHACMAN
Model Number: F3000
Certification: ISO 9001/CCC
Place of Origin: Shaanxi,Xian
MOQ: 1
Payment Terms: T/T, L/C
Supply Ability: 1000 units/month
Delivery Time: 45 working days
Price: Negotiable
Packaging Details: Nude pack, with wax before shipment.
Modle: SX3255DV384
Engine: WP12.375E50
Transmission: 10JSD180+QH50
Axle: 9.5T /2*16 T Double-stage,speed ratio-5.262
Wheel base: 3775+1400mm
Tire: 12.00R20
Fuel tank: 300L
Clutch: φ430 Diaphragm spring clutch
Air inlet: Ordinary air filter
Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer plate spring 4 main plates + 4 U-shaped bolts
Cabin: Medium-length flat top
Color: Yellow; Red; Green; Blue
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

50ton Heavy Dump Truck SHACMAN F3000 Dump Truck Trailer 6*4 Driving

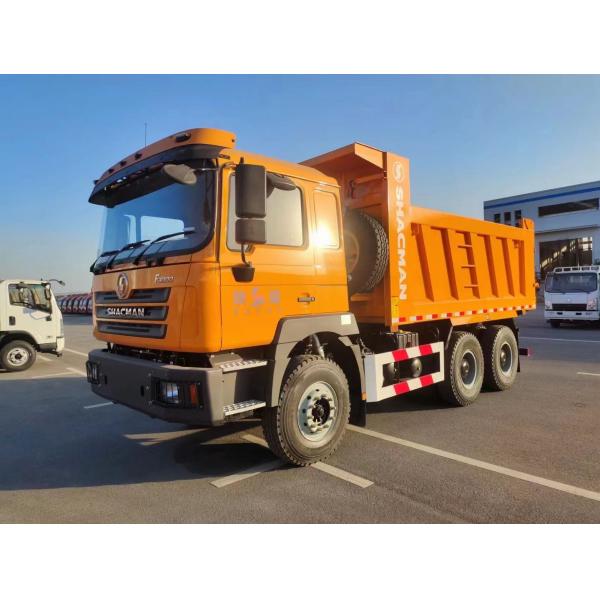

SHACMAN F3000 6X4 Dump Truck Yellow


Detailed Product Description
Model: SX3255DV384
Engine Model: W10.375E50 WEICHAI 275kw /375Hp Euro V

Gearbox Model: 10JSD180+QH50 FAST

Axle : 9.5T /2*16 T Double-stage,speed ratio-5.92


Dump Truck Parameters

ModelSX3255DV384
Drive Type6x4
WeightGross Vehicle Weight≤50
DimensionsWheelbase/(mm)3775+1400
PerformanceMaximum speed/(km/h)40~55/75
Ground clearance>314
EngineBrandWEICHAI
ModelW10.375E50
Power/(Kw/HP)275kw / 375Hp
Maximum torque / (N.M)/rpm1600 N·M
Displacement/(L)9.726 L
Emission standardEuro II
GearboxBrandFAST
Model10JSD180-B+QH50
ClutchTypeφ430 Diaphragm spring clutch
CoolingTypeDomestic heat sink
Air inletTypeOrdinary air filter
BrakesTypeDrum brake
Service brakeDouble circuit air brake
Park brakeRear wheel spring brake
Auxiliary brakeWEVB engine exhaust brake
SteeringTypeZF8098 technology, circulating ball steering machine
ChassisTypeParallel trapezoidal frame with variable section
Dimensions/(mm)850×300(8+7)
SuspensionFrontMulti-layered leaf springs with 4 Main springs+4 U Bolts
RearMulti-layered leaf springs with 4 Main springs+4 U Bolts
AxlesBrandHANDE
Front axle9.5T front axle MAN technology
Rear axle2*16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
TiresType12.00R20
Fuel tankTank capacity/(L)300L Aluminum tank
ElectricsType24V
Battery165Ah Maintenance-free battery
CabTypeSHACMAN F3000 Medium-length flat cab
EquipmentHydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.

Why SHACMAN?

  • The SHACMAN F3000 series is known for its robustness, reliability, and versatility. It is designed to handle demanding tasks in various industries, including construction, mining, transportation, and more. The trucks in this series are built to withstand harsh operating conditions and deliver high performance.
  • The inclusion of electronic brake-force distribution systems in SHACMAN trucks optimizes brake force distribution across all wheels, improving braking performance and stability.

Detailed Image


FAQ
1. Who are we?
Eastern Asia, including countries like China, Japan, and South Korea, contributes 2.00% to our overall sales.
South Asia, comprising nations like India, Pakistan, and Bangladesh, is another region where our SHACMAN Trucks have gained traction, representing 2.00% of our market.

2. How can we guarantee quality?
The development of a pre-production sample is crucial for verifying that the product meets all required standards and specifications before proceeding with full-scale manufacturing.
A pre-production sample is a necessary step in the production process to minimize risks and ensure that the final product meets the desired quality standards.


3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, FCA
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
