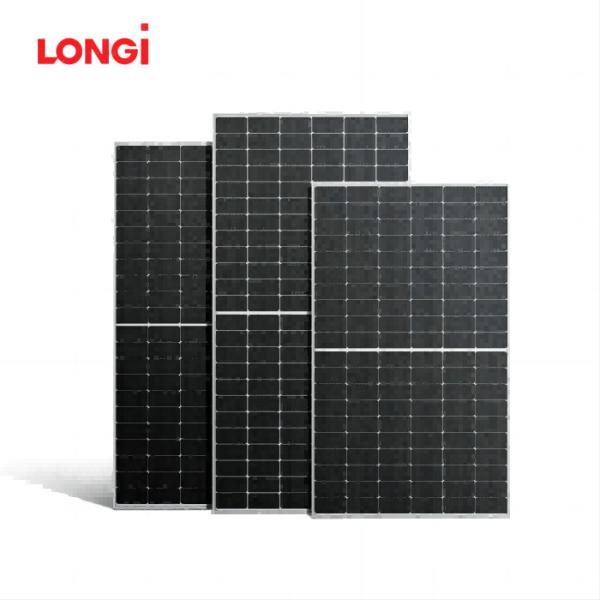

Monocrystalline Silicon Longi PV Panel 560 Watt Solar Panel Transparent

Categories One Stop Solar Solutions
Brand Name: Longi
Model Number: LR5-72HPH
Certification: TUV CE
Place of Origin: China
MOQ: 1 PCS
Price: $0.13~$0.15
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000+peices/month
Delivery Time: 5-15 days
Packaging Details: carton pallet 31pcs perpallet/155pcs per 20'GP/620pcs per40'HC
Cell size: 182mmx182mm
Panel Dimensions: 2278*1134*35mm
Panel Efficiency: 21.7%
Application: Commercial
Material: Monocrystalline Silicon
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Monocrystalline Silicon Longi PV Panel 560 Watt Solar Panel Transparent

Longi PV Panel 540w 545w 550w 555w 560watt Mono Perc Transparent Single Solar Panel Monocrystalline Silicon


Features

1,Smart Soldering

2,Optimized Electrical Parameters

3,Optimized Module Size

4,Smart Module Packaging and Logistics

5,Gallium-doped Technology


Electrical CharacteristicsSTC:AM1.51000W/m² 25℃NOCT:AM1.5800W/m²20℃ 1m/sTet uncertainty farPman±3M
Module TypeLR5-72HPH-540MLR5-72HPH-545MLR5-72HPH-550MR5-72HPH-555MR5-72HPH-560M
Testing ConditionSTCNOCTSTCNOCTSTCNQCTSTCNOCTSTCNOCT
Maximum Power(Pmax/W}540403.6545407.4550411.1555414.8560418.5
Open Circuit voltage (VocM)495046.5449.6546.6849.8046.8249.9546.9750.1047.11
Short Circuit Current /lsc/A)13.8511.2013.9211.253.98113114.0411.3514.1011.40
Voltage at Maximum Power [VmpM]41.6538.6941.80388341.9538.9742.1039.1142.2539.25
Curent at Maximum Power(Imp得129710.4313.0410.493.1210.5613.1910.6113.2610.67
Module Eficiency[%}20.921.121.321.521.7
Operating ParametersMechanical Loading
Operational Temperature40℃~+85℃Front Side Maximum Static Loading
Rear Side Maximum Static Loading
5400Pa
2400Pa
Power Output Tolerance0~3%
Woc and Isc Tolerance±3%Hailstone Test25mm Hailstone at the speed of23m/s
Maximum System VoltageDC1500N[IEC/UL]
Maximum Series Fuse Rating25A
Nominal Operating Cell Temperature45±2℃Temperature Ratings(STC)
Protection ClassClasslTemperature Coefficient of Isc+0.050%/℃
FireRatingTemperature Coefficient of Voc0.265%/℃
EC ClassCTemperature Coefficient of Pmax0.340%/℃
