Pharmaceutical Factory Disinfection HCHO Fixed Formaldehyde Gas Detector 4-20mA RS485

Pharmaceutical factory disinfection HCHO Fixed Formaldehyde Gas Detector 4-20mA, RS485

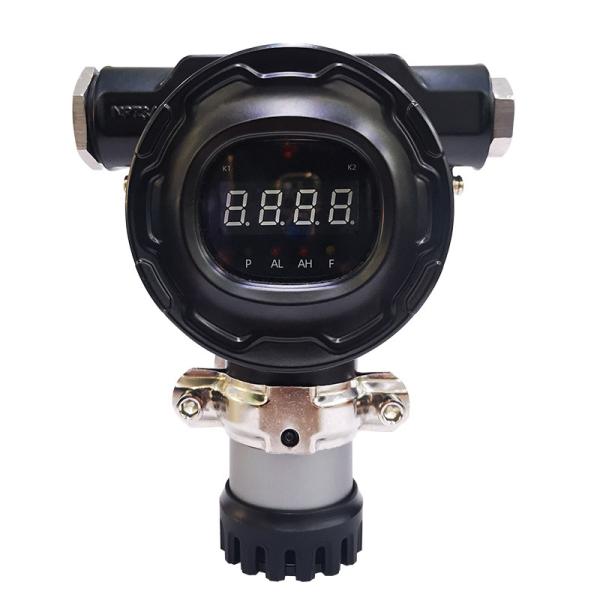

SG100 overview

SG100 series is an IECEX/ATEX/EMC certified single-gas detector with a rating of IP67, which is a 24-hours online gas monitor. It has standard 4-20mA current signal, RS485 modbus signal, 1 set of relay signal output, making it compatible with most control systems. Adopt magnetic wand design, it’s safe and easy to operate in explosion areas.

With IECEx, ATEX certificates, explosion level reaches Ex db IIC T6 GB/Ex db ia IIC T6 GB/Ex da db ia IIC T6 GB.

Product Advantages

• Module chamber design, no need to disassemble of the whole machine or return for calibration when maintenance, just replace the sensor chamber only and can work properly
• One-person calibration is easily performed using calibration cap
• Body weight is only 1 kg, easy to install by one-person
• IP66/IP67 water & dust resistant
• Quick site installation using a mounting plate accessory
• Standard 4-20 mA current signal, RS485 Modbus, 1 set of relay signal output
• Optional with 2 sets of relay signals, voltage1~5V
• Optional HART digital communication provides configuration
• Optional wireless transmission modes can be selected

Picture details

Specification

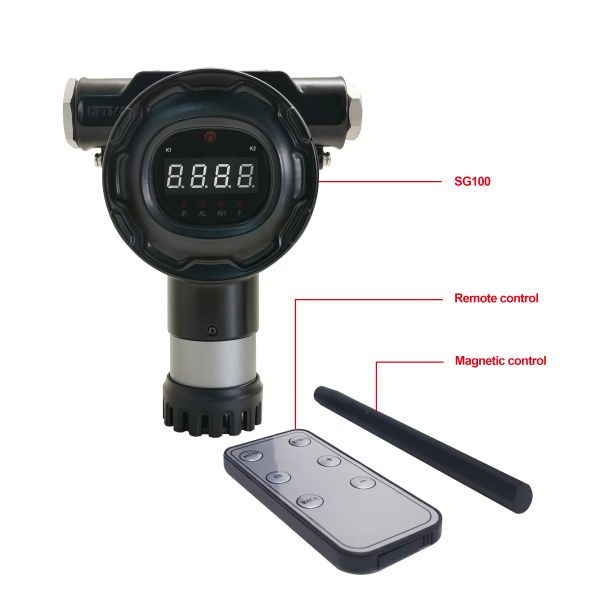

SG100 with Remote control and Magnetic control

Safegas- Company profile

Established in 2010, Shenzhen YuanTe Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 13 years. With gas detector as the core product, we have completed production line and solutions according to different industries.

We supply portable and fixed detectors for oxygen, toxic gas, explosive gas, and etc, mainly for industrial use. All sensor(main parts of detector) we use are imported from USA, Japan, Korea and Europe, there are brands like Alpha, City, Ion, Honeywell and etc, which is same level to BW, Drager, RAE, MSA.

FAQ

Q1: Are you factory or trade company?
A1: We are factory.

Q2: What about the payment method?
A2: Credit card, T/T, Western Union are available

Q3: Does your company accept customization?
A3: We do customizing service for customers.

Q4: What about the Shipment?
A4: We’ll choose proper transportation mode based on the weight of goods, usually arrange shipment byair express such as DHL,FEDEX,TNT or UPS.

Q5: What about after-sale service?
A5: 12 months warranty or 24 months warranty for all kinds of products.

Q6: How about the Calibration?

A6: Before send out, we will calibrate each pieces well with standard gas.

Q7: What certifications do you have?

A7: ATEX CE ISO9001-2015.
