| Categories | Stainless Steel Pipe |
|---|---|
| Brand Name: | DELTA |
| Model Number: | AISI316L / 1.4404 / 316S13 |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 500 kgs |
| Price: | 4650-5760 USD/Ton |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 10 Ton per week |
| Delivery Time: | 5 - 12 days based on the quantity |
| Packaging Details: | standard packing for export |
| Products: | Duplex Stainless Steel Pipe |
| Grade: | AISI316L / 1.4404/ 316S13 |
| Standard: | ASTM GB EN |
| Length: | 6m or custom cutting any length as request |
| Diameter: | DN10 - DN400 |
| Wall thickness: | SCH10 - XXS or unstandard size |
| Type: | seamless pipe |
| Service: | cutting, polishing |
| application: | Industrial |
| Packing: | wooden box or PP bag |
| Company Info. |
| JIANGSU MITTEL STEEL INDUSTRIAL LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

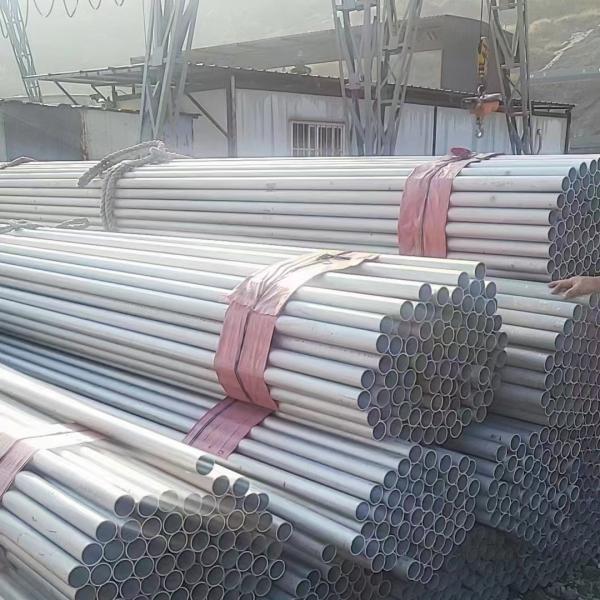

Seamless Stainless Steel Pipe ASTM A213 / ASTM A312 SS Pipe AISI316L / 316S13 Stainless Tube
Item | Stainless Steel Pipe/Tube | |
grade | 200 series,300 series,400 series | |
Standard | ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456,
DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605,
GB13296 | |
Material | 304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L,
316N,201,202 | |
Surface | Polishing,annealing,pickling,bright | |
Type | hot rolled and cold rolled | |
stainless steel round pipe/tube | ||
Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
Outer diameter | 1mm-150mm(SCH10-XXS) | |
stainless steel square pipe/tube | ||
Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
Outer diameter | 4mm*4mm-800mm*800mm | |
stainless steel rectangular pipe/tube | ||
Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
Outer diameter | 1mm-150mm(SCH10-XXS) | |
Length | 4000mm,5800mm,6000mm,12000mm,or as required. | |
AISI 316L stainless steel is a modified ultra-low carbon Cr-Ni-Mo series austenitic stainless steel based on AISI 316. It is recommended for parts that cannot be annealed after welding in certain corrosive environments. The addition of molybdenum can provide pitting resistance in phosphoric acid and acetic acid and dilute chloride solutions and corrosion resistance in sulfurous acid. SS316L is resistant to carbide precipitation in the temperature range of 425-870 °C (800-1600 °F), so normal welding can be performed without reducing corrosion resistance. However, when it is heated and kept in the sensitization temperature range for a long time during use, a large amount of carbides will precipitate, so it is usually recommended to use it below 425 °C (800 °F).
| 316L Stainless Steel Composition, % | |||||||||
| AISI | C, ≤ | Si, ≤ | Mn, ≤ | P, ≤ | S, ≤ | Cr | Ni | Mo | N, ≤ |
| 316L | 0.03 | 0.75 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | 0.10 |
| UNS Designation & International Equivalent | ||||||||
|---|---|---|---|---|---|---|---|---|
| Type | UNS | JIS | EN/DIN | EN/BS | EN/NF | ISO | GB | GOST |
| 316L | S31603 | SUS316L | X2CrNiMo18-14-3 | 316S13 | X2CrNiMo17-12-2 | 19 | 00Cr17Ni14Mo2 | 03KH17H14M2 |
| Wall Thickness | Stainless Steel 316L Tube Sizes ( O.D.) |
|---|---|
| .010 | 1/16" , 1/8" , 3/16" |
| .020 | 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8" |
| .012 | 1/8" |
| .016 | 1/8" , 3/16" |
| .028 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2" |
| .035 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .049 | 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .065 | 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3" |
| .083 | 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3" |
| .095 | 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2" |
| .109 | 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2" |
| .120 | 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3" |
| .125 | 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4" |
| .134 | 1" |
| .250 | 3" |
| .375 | 3 1/2" |
FAQ
Q1. Where is your factory ?
A1: Our company’s processing center is located in Foshan,
Guangdong, China. Which is well equipped with kinds of machines,
such as laser cutting machine,mirror polishing machine and so on.We
can provide a wide range of personalized services according to the
customers’ needs.
Q2. What are your company's main products ?
A2: Our main products are stainless steel plate/sheet, coil,
round/square pipe, bar, channel, etc.
Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party
Inspection is available.
Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more
competitive prices and best after-dales service than other
stainless steel companies.
Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, Russia,
UK, Kuwait, Egypt, Turkey, Jordan, India, etc.
Q6. Can you provide sample ?
A6: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
|
