| Categories | Salt Spray Test Chamber |
|---|---|
| Brand Name: | GSKA |
| Model Number: | GSA-654 |
| Certification: | CE |
| Place of Origin: | Donggaun,china |
| MOQ: | 1set |
| Price: | negotiate |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 260 Set / Sets per Month |
| Delivery Time: | 15-20working days after received deposit |
| Packaging Details: | Packed with strong plywood case suitable for long distance shipment. |
| Saturated air pressure(kgm2): | 0.8~2.0 |
| Mist volume(ml/80cm2/h):: | 0.5~3.0 |
| Certificate: | CE |
| Inner chamber size: | 900*600*500 mm |
| Salt solution: | 6.5~7.2 |
| Brine tank temperature: | Brine tank temperature~50℃,±0.5℃ |
| Warranty: | 1 Year |

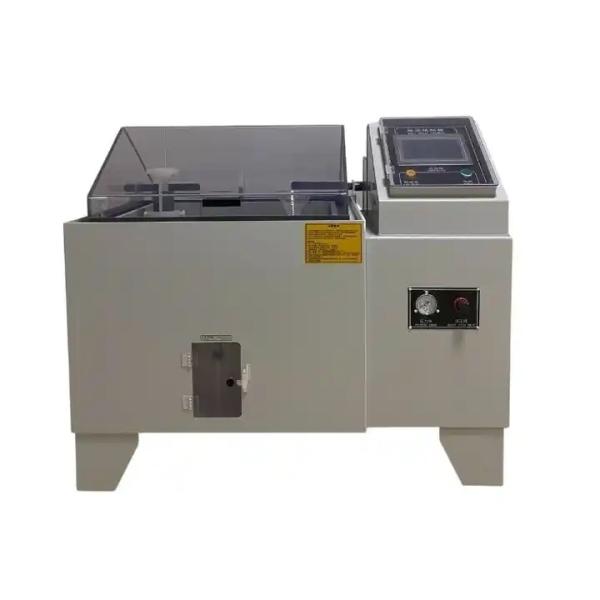

Salt Spray Test Chamber For Corrosion Test Of Metal Parts
product description:
Salt Spray Tester is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
Salt spray test equipment can be used to simulated condition that
more often meet at natural environment, and then deteriorated the
natural environment to be tested, such as the salt spray, dry, wet,
room temperature, low temperature environment, it can be tested in

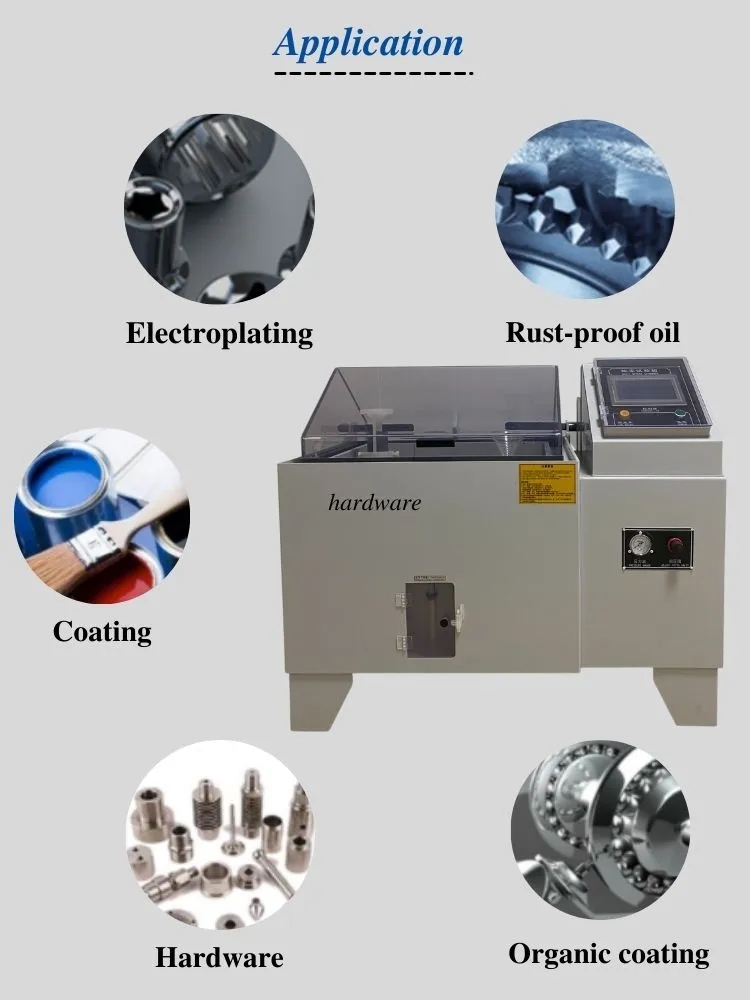

any order or individually tested. Applicable fields including
automobile parts, aviation equipment, photographic equipment,
building materials, electricity, electrical and electronic systems.
Product Features:
1. Adopt automatically add water system, can watered by itself while lack of water.
2. Precise glass spray nozzle, good uniformity, mist dropping naturally, no Na-Cl crystallized salt.
3. Double over-heat protection devise and alarm when water short storage to ensure use safety.
4. Digitally temperature controller, PID controlled.
5. Tapered Spray tower, even mist dropping.
Specifications:
| Inner chamber size W×H×D(cm) | 90×60×50 | ||
| Exterior chamber size W×H×D(cm) | 138×80×115 | ||
| Temperature range | Box temperature | Room temperature to +50℃,±0.5℃ | |
| Air saturation barrel | Brine tank temperature~63℃,±0.5℃ | ||
| Brine tank temperature | Brine tank temperature~50℃,±0.5℃ | ||
| Saturated air pressure(kgm2) | 0.8~2.0 | ||
| Mist volume(ml/80cm²/h) | 0.5~3.0 | ||
| PH | Salt solution | 6.5~7.2 | |
| PH value of Copper acetate | 3.0~3.2 | ||
| Material | Exterior chamber material | P.V.C&P.P | |
| Interior chamber material | P.V.C&P.P | ||
| System | Spraying system | Air acid (base)liquid | |
| Heating system | SUS#Stainless steel high-speed heater | ||
| Controller | Hydrometer,salt meter,mist collector,glass bar | ||
| Other components | Digital electronic indicator+SSR+PID | ||
| Safety device | Over-heat protection circuit breaker, dehydration and over-heat prevention mechanism,overload indicator | ||
| Power supply | AC 220V | ||
| Customization service | Non-standard or special requirements are all welcome | ||
FAQ:
Q1 : Can you customize the product?
A: Yes, we can customize any products according to requirements.Hot selling lab electronic temperature humidity cabinet/Environmental climate
test chamber also can be customized.
Q2 : How to choose the most suitable products?
A: Our professional team will give you the best suggestion,just be patiently to tell us the information about the parameters your required.
Q3 : Can you arrange installations and commissioning in our lab?
A: Firstly, for standard chamber we had 15-20 days commissioning before shipping , you just need link power in your lab, then can start to operate
Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it
Thirdly, some of customized chambers we should to install and teach
your team to operate .
|
