380V, 50/60 Hz
Modular design, easy assembly
Enclosure: Max. IP40
CCC,ISO9001,GB7251,IEC439
Send us your SLD (Single Line Drawing) or requirements, we design
the switchgear plan for you

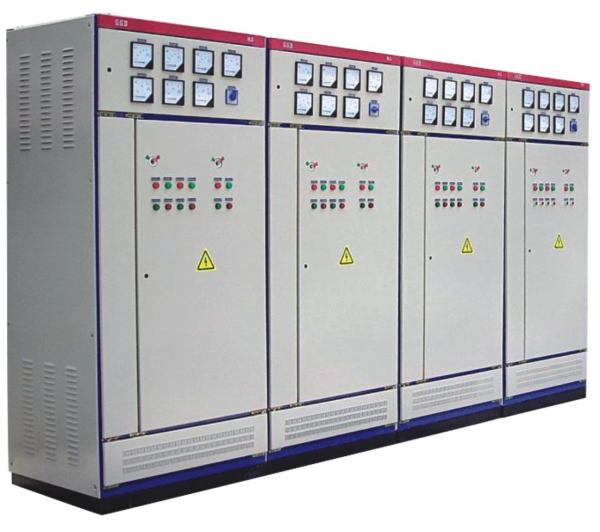

General
Used for power users such as power plants, substations, factories
and mines, as AC 50-60Hz, rated working current up to 3150A in the
power distribution system, as the power conversion, distribution
and control of power, lighting and power distribution equipment.
The product has the characteristics of good dynamic and thermal
stability, novel and reasonable structure, practical electrical
scheme, strong serial usability, and high protection level. It can
be used as an updated product.
The selection of electrical components
A. The GGD cabinet mainly adopts the more advanced electrical
components that can be mass-produced in China, such as DW45, MCCB,
DZ20, DW15, etc. At the same time, it also retains some of the
usable components based on economic and reasonable principles and
under the premise of full consideration of feasibility. Old
products such as DZ10, etc., do not use obsolete electrical
components.
B. HD13BX and HS13BX rotary-operated knife switches are special
components designed by NLS to meet the needs of the unique
structure of the GGD cabinet. It changes the operation mode of the
mechanism and retains the advantages of the old products. It is a
practical new type of electrical component. .
C. If the design department selects new electrical components with
better performance and more advanced technology according to user
needs, because GGD has good installation flexibility, it will
generally not cause manufacturing and installation difficulties due
to the update of electrical components.
D. In order to further improve the dynamic stability of the main
circuit, NLS designed a ZMJ type combined bus clamp and insulating
support for the GGD cabinet. The busbar clamp is made of
high-strength, high flame-retardant PPO alloy material, with high
insulation strength, good self-extinguishing performance and unique
structure. It can be easily combined into a single busbar clamp or
a double busbar clamp by adjusting the building block. The
insulating support is a sleeve-type molded structure with low cost
and high strength, which solves the defect of insufficient creepage
distance of old products.
Features
1. The instrument door equipped with electrical components is
connected to the frame with the multi-strand soft copper wire. The
installation parts in the cabinet and the frame are connected by
knurled screws, and the whole cabinet constitutes a complete
grounding protection circuit.
2. Polyester orange-shaped baking paint is used for the cabinet
body finish. Strong adhesion and good texture. The whole cabinet is
in matte tones, which avoids the dazzling effect and creates a more
comfortable visual environment for the staff on duty.
3. The top cover of the cabinet can be removed when needed to
facilitate the assembly and adjustment of the main bus on site. The
four corners of the cabinet top are equipped with lifting rings for
lifting and shipping.
4. The cabinet body protection grade is IP30, and users can also
choose between IP20~IP40 according to the requirements of the use
environment.
