High Efficiency Mortar Spraying Machine Automatic Plastering Machine For Exterior Wall

high efficiency plastering machine for exterior wall cement mortar spray machine

Introductions

Wall cement mortar sprayer is suitable for pumping and spraying the dry ready-mixed mortar witch is pump, such as Cement mortars, Lime plasters, Gypsum plasters, Masonry mortars, Insulating plasters, Self-leveling floor screeds, fireproof paint,etc.The machine consists of units, permitting easy and comfortable transport due to their small and handy dimensions and low weights.

Application

1.The Plastering Machine is a new desinged multi-functional plastering equipment.
2.The Plastering Machine can be used for pumping and spraying ready-mixed mortar material, such as cement mortar, lime plaster, gypsum plaster, masonry mortar.
3.The Plastering Machine can be used for plastering fluid materials, such as thermal insulation material of walls, refractory material, fire-proof material, water-proof material, acoustic material, water soluble etc.

Parameter:

Features:

1. Adjust the size of the flow, tune out the best coating results.
2. In addition to the electrical control box can switch, but also equipped with remote control switch spraying.
3. Gun connection with the feeding tube can be rotated for easy operation.
4. High efficiency, good quality.
5. Easy structure, easy to handling on-site,and accessories is cheap ,easy to maintenance.

Working Principle:

1.The dry materials is supplied in sacks and filled into the large hopper. the low height of the SX30 makes filling considerably easier.the materials is then transported by the agitator out of the hopper into the mixing pipe of the machine.the particular geometry of the agitator means the hopper can be emptied almost 100%.

2. Adjustable speed of the screw pump, the output flow of 0-8 liters / min, in the work, as long as the return adjust to the output speed that construction requirements.

3. The mixing material must be continuously added to the hopper to ensure the continuity of the spray.
Spray work to be suspended, press the stop button can be, can make the operation more convenient, you can use the following methods for remote control: the middle of the box to the left is the manual control switch.

4. Spray work before the end of the hopper to be left after the material spray, close the air pump, after the shutdown.

5. Remove the gun and remove the parts one by one clean.

6. Make the water into the hopper, press the pump to clean the pump. When the nozzle flows out of the clear water, press the button to stop, remove the delivery hose and roll up.

global agent recruitment.pdf

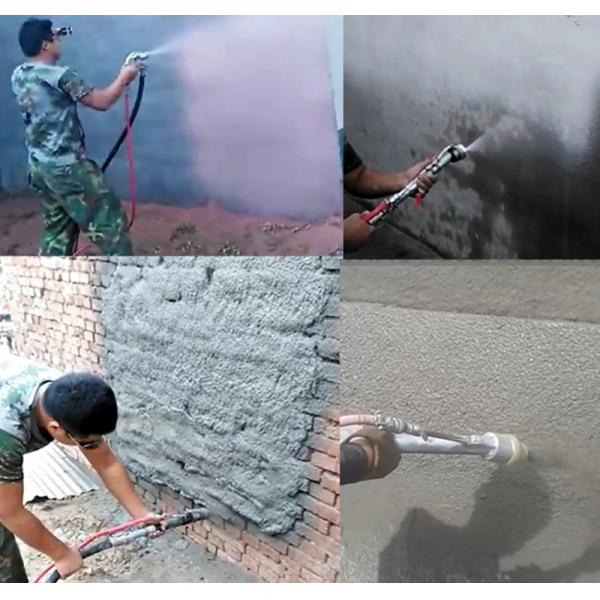

Pictures:

Since 2001, Zhengzhou Sincola Machinery Co.,Ltd is the professional manufacturer and the model company for advanced and high efficient construction machinery in this field. SINCOLA Company congregates an expert team with ten-year experiences, not only working hard to constantly R&D, but also exploring processes in order to benefit our clients

After years of exploration and research, our technique has been widely applied to produce the following products:

1.Concrete mixing plant,concrete mixer,

2.dry mortar mixing plant,dry mortar mixer

3. shotcrete machine plaster machine and mortar pump,wall rendering machine,concrete pump,hose pump etc

"Create Greatest Value for Clients" is our consistent concept and the base of long-term cooperation with clients.

Meanwhile, our machines have been exported to many countries for years, such as Malaysia, Indonesia, Philippines, Vietnam, Thailand, Japan, South Korea, India, Pakistan, Russia, Kazakhstan, Uzbekistan, Turkmenistan, Jordan, Iran, Egypt, South Africa, Algeria, the Netherlands, Poland, Macedonia, Brazil, Argentina, Australia, etc.
