| Categories | Cold Rolled Steel Tube |
|---|---|
| Brand Name: | New Era |
| Model Number: | DIN2391 |
| Certification: | ISO9001,TS16949 |
| Place of Origin: | China |
| MOQ: | 1 tons |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 3000 tons/month |
| Delivery Time: | 45 days |
| Packaging Details: | Bundles Package, Wooden Box Package |
| Product Name: | Seamless Cold Rolled Steel Pipe |
| Delivery Condition: | BK,BKW,BKS,GBK,NBK |
| OD Size: | 6-88mm |
| WT Size: | 1-15mm |
| Standard: | DIN2391 |
| Application: | Shock Absorber |
| Steel Material: | St35 , St45 , St52 |
| Production Process: | Cold Rolling |
| Company Info. |
| NEW-ERA STEEL TUBE TECHNOLOGY CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

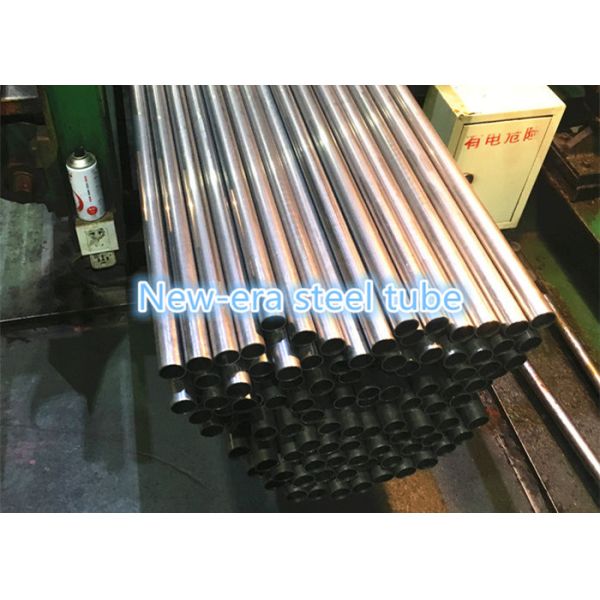

430 Hot Cold Rolled Seamless Stainless Steel Pipe ST52 Cold Rolled Tube
Quality Control:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing or Cold Rolling, On line inspection
5. Heat Treatment:BKS, GBK, NBK
6. Straightening/Cutting to specified length/Finished Measuring
Inspection
7. Quality Testing in own lab with Tensile Strength, Yield
Strength, Elongation, Hardness, Straightness, etc.
8. Packing and Stocking.
Product Parameters | ||||
Standard | DIN2391 EN10305-1 ASTMA179 ASTM A192 ASTM A519 | |||
Material | ASTM A106 GR B(ST45) Q355B Q355D CK45 E355(ST52) SAE1026 | |||
Outer diameter | 10mm-325mm | |||
Wall thickness | 1mm-40mm | |||
Length | fixed(3-12m) or customized | |||
Technology | High precision Cold drawn/ Cold rolled | |||
Heat treatment | BK/BKS/NBK | |||
Advantages | Short delivery time Quality assurance Competitive price | |||
| Product Name | High Precision Cold Rolling Seamless Steel Pipe for Shock Absorber |
| Material | ST35, St45, ST52 |
| Delivery Condition | BK, BKW, BKS, GBK, NBK |
| Standard | DIN2391 |
| Size Range | OD: 6-88mm, WT: 1-15mm |
| Application | High precision purpose, auto parts, oil cylinder, etc |
| Round Billet | Bao Steel, Xingcheng Steel, Huai Steel, Zhongtian Steel |
| Keyword | Cold Rolling Steel Pipe |
| Certificate | TS16949, ISO 9001 |
| HS code | 7304319000 |
| Delivery Time | 45 days |
| Packing | Bundles or Wooden Boxes |
| Steel Grade | Chemical Composition | |||||
| Symbol | Material Number | C | Si | Mn | P | S |
| ST35 | 1.0308 | 0.17 | 0.35 | ≥0.40 | 0.025 | 0.025 |
| ST45 | 1.0408 | 0.21 | 0.35 | ≥0.40 | 0.025 | 0.025 |
| ST52 | 1.0580 | 0.22 | 0.55 | ≤1.60 | 0.025 | 0.025 |
| Steel Grade | BK | BKW | BKS | |||||
| Name | No. | Rm | A | Rm | A | Rm | ReH | A |
| ST35 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 315 | 14 |
| ST45 | 1.0408 | 580 | 5 | 520 | 8 | 520 | 375 | 12 |
| ST52 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450 | 10 |
| Steel Grade | GBK | NBK | ||||
| Name | No. | Rm | A | Rm | ReH | A |
| ST35 | 1.0308 | 315 | 25 | 340--470 | 235 | 25 |
| ST45 | 1.0408 | 390 | 21 | 440--570 | 255 | 21 |
| ST52 | 1.0580 | 450 | 22 | 490--630 | 355 | 22 |
FAQ:
1. Can you provide a sample to check the quality?
We can provide free sample with same or similar sizes for you to
check tube quality.
You need to in charge of Express costs.
2. How about your production capacity?
3000 tons/Month.
3. What are your terms of payment?
30%TT in advance, Balance to be paid before shipment.
4. Where is your factory?
Jiaxing city, 2 hours away from Shanghai.
5. How can I get the quotation A.S.A.P?
Please send us an inquiry with full details as following,quotation
will sent to you A.S.A.P:
1). Tube Standard
2). Steel Grade
3). Tube Size and Size Tolerance
4). Tube length
5). Quantity
6). If any special requirements
6. How about the minimum order quantity?
Normally for one size above 1 ton.
Welcome to contact us! Thanks.
|
