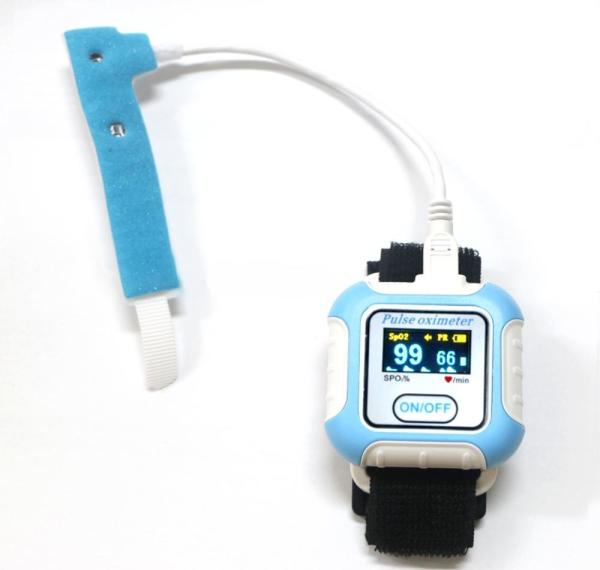

Name: Plastic Material Bluetooth Wrist Pulse Oximeter Sleep Aid Device With APP
Brand: BERRY
Price: 60.00 USD

BM2000A Sleep monitoring system Suitable for sleep hypopnea syndrome monitoring

Instructions

BERRY Sleep Apnea Screening Monitor has 510K, CE0123, ISO13485, FCC, RoHS and we can meet most people's measurements of blood oxygen and pulse rate. It can accurately capture pulse signals and has been validated in numerous clinical trials.

Widely Used In Daily Life

BM2000A applies to Aviation,Snorer,Child,Asthma,COPD.

Major Features

1.Equipment is suitable for sleep or Apnea respiratory monitoring, especially Apnea and hypopnea monitoring. 2.Through contrast experiments with PSG, it can be used for the diagnosis of clinical sleep apnea syndrome. 3.Product is low power consumption, The 3.7V lithium battery can last for more than 20 hours. 4.The equipment has approved international CE, 510K, and other certifications. 5.Various types of sensors, which are suitable for infants and children adults and people of different ages and people of different skin colors. 6.Sleeping applet can be connected by the bluetooth. Record the data of every second actually, store and feedback the monitoring data of the whole night to the device, so as to generate the sleep report.

Operation Process

1,Download the "BerrySmartHealth" APP from Google Play and Apple Store. 2,Wear the equipment to keep at least 6 hours sleep monitoring. 3,Put on the device and wrap foam spO2 sensor around fingertip. 4,The collected data is transferred to the mobile phone via bluetooth. 5,Display report on phone. 6,Reports can be shared..

Technical Features

Display SpO2, PR	Battery Type: 3.7v (1000mAh) Rechargeable Lithium Batteries
Pulse Rate: Measurement range: 25 - 250bpm Accuracy: ±2bpm	SpO2: Measurement range: 35% - 100% Accuracy: ±2% (80% - 100%) ；±3% (70% - 79%)
Working Voltage: DC 3.4v ~ DC 4.3v	Free App: “BerrySmartHealth”
Size:68(L)x58(W)x20(D)mm	Weight: 50g

Accuracy Of The Test Pulse Rate Test

Blood Oxygen Concentration Test Berry Product Rate VS

Reference heart rate ECG Correlation=0.98, P-value< 0.0001

Average reference oximeter Reference Heart Rate(ECG)

Effective (SaO2) (ECG) [BPM]

Comparison: Reference Pulse Oximeter
Berry Pulse Oximeter	70 ~100	90 ~ 100	80 - < 90	67 - < 80	RESE≤3% Within the range of 70~100%
# pts	240	79	81	81	RESE≤3% Within the range of 70~100%
Error	-0.6	-1.1	-0.9	0.1	Pass
Root mean square error	1.9	1.7	2.0	2.1	Pass

BERRY products have passed the accuracy test, blood oxygen

concentration accuracy <2%,510k requirements<3%

Parameter Comparison Chart

Apnea Trend

Hypopnea Trend

Software Advantage

Blood Oxygen Results

Mean Blood Oxygen Results

Diagnosis Of Hypoxemia OSAHS Diagnosis

PSG vs. ROC Curve

Analysis Of Clinical Trial Results

Mean Blood Oxygen
Average blood oxygen calculation accuracy: 98.51%
Diagnosis of hypoxemia
Sensitivity: 89.29%	Specificity: 77.78%	Accuracy:92.59%
OSAHS Judgment Results
OSAHS Judgment Results
Sensitivity: 94.17%	Specificity: 61.21%	Accuracy:89.62%

Standard Configuration

1,Wristbands

2,Foam SpO2 Sensor 3,Charging Cable 4,Gift Box 5,User Manual

Reports can be shared.

Our Factory

Our Bio-Medical technology has reached the domestic advanced level. Important breakthroughs have been made in non-invasive blood pressure calculation methods, blood oxygen saturation detection, and multi-parameter monitoring systems. After years of development, we have established good cooperative relations with customers worldwide, with annual sales reaching tens of millions dollars.

BM2000A Sleep monitoring system Suitable for sleep hypopnea syndrome monitoring

Instructions

BERRY Sleep Apnea Screening Monitor has 510K, CE0123, ISO13485, FCC, RoHS and we can meet most people's measurements of blood oxygen and pulse rate. It can accurately capture pulse signals and has been validated in numerous clinical trials.

Widely Used In Daily Life

BM2000A applies to Aviation,Snorer,Child,Asthma,COPD.

Major Features

1.Equipment is suitable for sleep or Apnea respiratory monitoring, especially Apnea and hypopnea monitoring. 2.Through contrast experiments with PSG, it can be used for the diagnosis of clinical sleep apnea syndrome. 3.Product is low power consumption, The 3.7V lithium battery can last for more than 20 hours. 4.The equipment has approved international CE, 510K, and other certifications. 5.Various types of sensors, which are suitable for infants and children adults and people of different ages and people of different skin colors. 6.Sleeping applet can be connected by the bluetooth. Record the data of every second actually, store and feedback the monitoring data of the whole night to the device, so as to generate the sleep report.

Operation Process

1,Download the "BerrySmartHealth" APP from Google Play and Apple Store. 2,Wear the equipment to keep at least 6 hours sleep monitoring. 3,Put on the device and wrap foam spO2 sensor around fingertip. 4,The collected data is transferred to the mobile phone via bluetooth. 5,Display report on phone. 6,Reports can be shared..

Technical Features

Display SpO2, PR	Battery Type: 3.7v (1000mAh) Rechargeable Lithium Batteries
Pulse Rate: Measurement range: 25 - 250bpm Accuracy: ±2bpm	SpO2: Measurement range: 35% - 100% Accuracy: ±2% (80% - 100%) ；±3% (70% - 79%)
Working Voltage: DC 3.4v ~ DC 4.3v	Free App: “BerrySmartHealth”
Size:68(L)x58(W)x20(D)mm	Weight: 50g

Accuracy Of The Test Pulse Rate Test

Blood Oxygen Concentration Test Berry Product Rate VS

Reference heart rate ECG Correlation=0.98, P-value< 0.0001

Average reference oximeter Reference Heart Rate(ECG)

Effective (SaO2) (ECG) [BPM]

Comparison: Reference Pulse Oximeter
Berry Pulse Oximeter	70 ~100	90 ~ 100	80 - < 90	67 - < 80	RESE≤3% Within the range of 70~100%
# pts	240	79	81	81	RESE≤3% Within the range of 70~100%
Error	-0.6	-1.1	-0.9	0.1	Pass
Root mean square error	1.9	1.7	2.0	2.1	Pass

BERRY products have passed the accuracy test, blood oxygen

concentration accuracy <2%,510k requirements<3%

Parameter Comparison Chart

Apnea Trend

Hypopnea Trend

Software Advantage

Blood Oxygen Results

Mean Blood Oxygen Results

Diagnosis Of Hypoxemia OSAHS Diagnosis

PSG vs. ROC Curve

Analysis Of Clinical Trial Results

Mean Blood Oxygen
Average blood oxygen calculation accuracy: 98.51%
Diagnosis of hypoxemia
Sensitivity: 89.29%	Specificity: 77.78%	Accuracy:92.59%
OSAHS Judgment Results
OSAHS Judgment Results
Sensitivity: 94.17%	Specificity: 61.21%	Accuracy:89.62%

Standard Configuration

1,Wristbands

2,Foam SpO2 Sensor 3,Charging Cable 4,Gift Box 5,User Manual

Reports can be shared.

Our Factory

Our Bio-Medical technology has reached the domestic advanced level. Important breakthroughs have been made in non-invasive blood pressure calculation methods, blood oxygen saturation detection, and multi-parameter monitoring systems. After years of development, we have established good cooperative relations with customers worldwide, with annual sales reaching tens of millions dollars.

Categories	Sleep Apnea Monitor
Place of Origin:	China
Brand Name:	BERRY
Model Number:	BM2000A
Packaging Details:	Each one in a box, then packed in standard export carton.
Supply Ability:	100 Set/Sets per Week
MOQ:	50 units
Price:	$60.00/units 50-99 units
Power Source:	Electricity
Warranty:	1 Year
After-sale Service:	Online technical support
Power Supply Mode:	Built-in Battery
Material:	Plastic
Shelf Life:	1years
Quality Certification:	ce
Instrument classification:	Class II
Safety standard:	None
Color:	White +Blue
User:	Adult and Child
Application:	home sleep test for sleep apnea
Certificate:	CE/ ISO13485
Usage:	all kinds of people
Weight:	50g (exclusive SpO2 sensor)
APP:	Android :Search "SleepCare Plus"
Deliver y time:	Samples: about 2 days
spo2:	35%-100%
Product name:	pulse oximeter
