Black High Efficient Photovoltaic Monocrystalline Panel Solar Cells 540W 550W

Categories Mono PV Panels
Brand Name: SUNPOK
Model Number: NES144-7-500M
Certification: CE TUV
Place of Origin: China
MOQ: 10 Pcs
Price: USD 128.5 / Pcs
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60000 Pcs Per Month
Delivery Time: 5-10 Days
Packaging Details: Carton / Wooden Box
Type: PERC, Half Cell, Bifacial, Double-glass, All Black
Solar Cell: A-grade
Junction Box: IP67 Rated
Color: Black
Frame: Aluminum Alloy
Warranty: 25 Years Warranty
Cells: 166/182/210mm
OEM Order: Acceptable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Black High Efficient Photovoltaic Monocrystalline Panel Solar Cells 540W 550W

550 Watts High Efficient Mono Photovoltaic 540W 550 W 560W Black

What is the Difference Between Mono Solar Panels and Poly Solar Panels in the Price?


Monocrystalline solar panels are often more expensive than polycrystalline solar panels since their manufacturing process is more energy-consuming and complex. Indeed, the cost per watt of polycrystalline solar panels is generally between $ 0.3 and $ 0.4 while that of monocrystalline solar panels is between $ 0.35 and $ 0.5.


However, the efficiency of monocrystalline solar panels is higher than that of polycrystalline solar panels. Although they are more expensive (and more beautiful according to many), they produce more energy. Knowing that the lifespan of a solar panel is 25 to 40 years, the additional cost is very often worth it.


Main Parameters of Sunpok Mono PV Panels


Electrical Characteristics
ModelNES144-6-450MNES132-7-500MNES144-7-550M
Maximum Power(Pmax)450W500W550W
Optimum Operating Voltage(Vmp)41.00V38.35V41.96V
Optimum Operating Current(Imp)10.98A13.04A13.11A
Open Circuit Voltage(Voc)49.50V45.59V49.90V
Short Circuit Current(Isc)11.42A13.93A14.00A
Module Efficiency20.70%20.37%21.28%
Operating Module Temperature-40 ℃ to +85 ℃
Maximum System Voltage1500V DC (IEC)
Power Tolerance0~+5W
STCirradiance 1000 W/m2, module temperature 25oC, AM=1.5; Best in Class AAA solar simulator (IEC 60904-9) used
Mechanical Characteristics
Solar Cell166mm 9BB Monocrystalline silicon cells
No. of Cells144(6x12x2)
Dimensions2094x1038x35mm;2108x1048x35mm
Weight24.5kg
Front Glass3.2mm(0.13 inches) tempered glass
FrameAnodized aluminum alloy
Junction BoxIp67 rated
Output Cables4.0 mm 2 (0.006 inches 2 ), 300mm/Customized
ConnectorsMC4 connectors
Temperature Characteristics
NOCT45±2 ℃
Temperature Coefficient of Pmax-0.380%/ ℃
Temperature Coefficient of Voc-0.300%/ ℃
Temperature Coefficient of Isc0.060%/ ℃
Packing Configuration(35mm)
Per Pallet30Pieces
Per Container (20' GP)282Pieces
Per Container (40' HQ)704Pieces

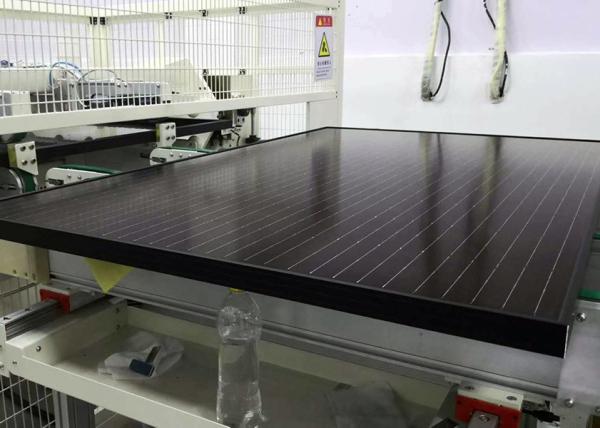

Sunpok Mono PV Panels Production Plant and Packaging


FAQ

Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.

Question 2: What is the warranty period, and how many years?
Answer 2: The warranty period for mono PV panels is 10-25 years.

Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to overseas help our customers if necessary.

Question 4: How to become your agent?
Answer 4: Contact us through the website, email, or phone, and we can talk about details to confirm.

Question 5: Is the sample available and free?
Answer 5: Sample will be charged a cost, but the cost will be refunded after the bulk order.

Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our partners.

If you have other questions, please add the contact information of our sales manager to understand, thank you!
