199-4726 Excavator Travel Device E374D Final Drive Parts 374D

Categories Excavator Travel Device
Brand Name: TGFQ
Model Number: E374D 374D
Place of Origin: CHINA
MOQ: 1
Price: 500.00-4000.00USD
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 500 pcs / month
Delivery Time: 1-3days
Packaging Details: NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Product Name: 374D Excavator Travel Reduction
Model: E374D 374D
Shaft: 15/22T
Package: 65*65*65CM
Weight: 530KG
Part Number: 199-4726
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

199-4726 Excavator Travel Device E374D Final Drive Parts 374D

199-4726 Travel Drive E374D Excavator Final Drive Parts 374D

Product Parameter:

Product name:374D Excavator Final Drive
Place of Origin:China(mainland)
Model:E374D/ 374D
Color:Black
MOQ:1 PCS
Part Number:199-4726
Delivery time:Within 1-3 days after receiving the payment
Means of Transport:
By Sea, By Air or By Express

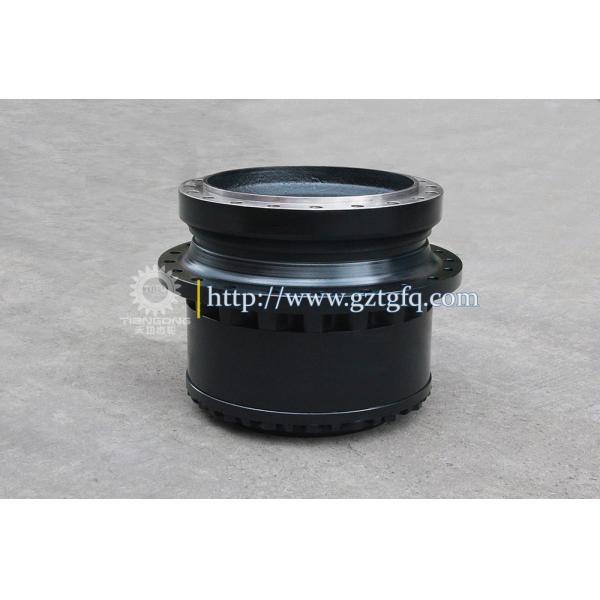

374D Excavator Final Drive Picture:
374D Excavator Final Drive Drawing:
Pos.Part NoQtyParts Name
1199-4727[1]HOUSING-MOTOR
2214-7880[1]SEAL GP-DUO-CONE
 214-7879[2]RING-TORIC
3163-1657[2]CUP-SPECIAL TAPERED
4163-1656[2]CONE-SPECIAL TAPERED
58C-3411 M[10]BOLT (M30X3.5X90-MM)
6136-2926[4]GEAR-PLANETARY (22-TEETH)
7136-2923[1]GEAR-SUN (20-TEETH)
87Y-1469[1]COUPLING
9136-2944[2]SPACER (61X95.1X10-MM THK)
10136-2948[6]PIN-DOWEL
11199-4728[1]HOUSING (SPROCKET)
12136-2959 BJ[1]SHIM (0.3-MM THK)
 136-2962 BJ[1]SHIM (0.6-MM THK)
 136-2963 BJ[1]SHIM (0.7-MM THK)
 136-2964 BJ[1]SHIM (0.8-MM THK)
 136-2965 BJ[1]SHIM (1-MM THK)
 136-2966 BJ[1]SHIM (1.6-MM THK)
17136-2949[1]GEAR-COUPLING (83-TEETH)
18136-2967[1]SEAL-O-RING
19136-2947[1]CARRIER-PLANETARY
20136-2945[1]SPACER (203X233X8.5-MM THK)
217Y-0667[1]RING-RETAINING
22136-2930[1]CARRIER-PLANETARY
23136-2922[1]GEAR-SUN (19-TEETH)
24136-2927[1]GEAR-RING (86-TEETH)
257M-8485[2]SEAL-O-RING
263E-2338[2]PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL)
27136-2934[1]CARRIER AS
27A.136-2931[3]SHAFT-PLANETARY
28136-2943[1]RING-RETAINING
29136-2921[1]GEAR-SUN (22-TEETH)
307Y-1493[1]SPACER (8.7X50X14-MM THK)
317Y-0808 B[1]SHIM (1.6-MM THK)
32136-2946[3]BEARING-CAGED
338T-4240[3]RING-RETAINING
34094-0584[6]WASHER (40.3X72X1-MM THK)
35136-2924[3]GEAR-PLANETARY (31-TEETH)
368T-3957 M[12]BOLT-SOCKET HEAD (M12X1.75X30-MM)
37136-2920[1]COVER
38136-2932[3]SHAFT-PLANETARY
397Y-5231 M[18]BOLT (M30X3.5X260-MM)
409X-8258[18]WASHER (33X56X6-MM THK)
41136-2925[3]GEAR-PLANETARY (23-TEETH)
421U-8846 B SEALANT-GASKET
43136-2928[1]GEAR-RING (68-TEETH)
447Y-0912[11]BEARING AS-ROLLER
454I-7576[14]WASHER (66.3X104X3-MM THK)
46099-5194[7]PIN-SPRING
47136-2933[4]SHAFT-PLANETARY
48096-3216 M[2]SETSCREW-SOCKET (M12X1.75X12-MM)
   AVAILABLE REPAIR KIT(S):
 136-2957 J[1]KIT-SHIM (FINAL DRIVE)
 B USE AS REQUIRED
 J KIT MARKED J INCLUDES PART(S) MARKED J
 M METRIC PART

How does an excavator gearbox work?

The gearbox of the excavator is composed of a hydraulic torque converter, a planetary gear and a hydraulic control system. The transmission of hydraulic power and the combination of gears are used to achieve variable speed and torque.
