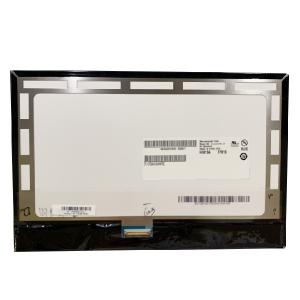

10.1inch LCM 1280x800 250 800:1 16.7M WLED EDP B101EAN01.8 LCD Display

Categories LCD Screen Display Panel
Brand Name: AUO
Model Number: B101EAN01.7
Place of Origin: China
MOQ: 10pcs
Price: Negotiable
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Delivery Time: 7 Days
Packaging Details: Original packaging/conventional packaging box
Model P/N: B101EAN01.8
Diagonal Size: 10.1"
Resolution: 1280(RGB)×800 (WXGA) 149PPI
Active Area: 216.96 × 135.6 (H×V) mm
Outline Dim.: 227.72(H)×147.8(V)×4.4(D) mm
Luminance: 250 cd/m² (Typ.)
Contrast Ratio: 800:1 (Typ.) (TM)
Response Time: 30 (Typ.)(Tr+Td) ms
Number of: 16.7M, 50% NTSC
Designed For: Pad & Tablet
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

10.1inch LCM 1280x800 250 800:1 16.7M WLED EDP B101EAN01.8 LCD Display

10.1inch LCM 1280x800 250 800:1 16.7M WLED EDP B101EAN01.8 LCD Display


B101EAN01.8 Product details :


AUO LCD SCREEN B101EAN01.8
Panel BrandAUO
Model NameB101EAN01.8
Screen size10.1 inch
Screen typeLCM, a-Si TFT-LCD
Resolution1280(RGB)×800 (WXGA) 149PPI
Pixel FormatRGB Vertical Stripe
Display size216.96 × 135.6 (H×V) mm
Outline Size227.72(W)×147.8(H) ×4.4(D) mm
SurfaceMirror (Haze 0%), Hard coating (3H)
Brightness250 cd/m² (Typ.)
Contrast800: 1 (Typ.) (transmission)
Best angle6 o'clock
Optical modeTN, normally white display, transmissive
Viewing angle80/80/80/80 (Typ.)(CR≥10)
Responding30 (Typ.)(Tr+Td) ms
Number of16.7M, 50% NTSC
Backlight typeWLED, 15K hours, with LED driver
Screen weight140g (Max.)
Refresh rate60Hz
ApplicationPad & Tablet
Touch functionNo touch
Signal systemeDP (1 Lane), connector, 30 pins
Supply voltage3.3V (Typ.)
MaximumWorking: 0 ~ 50 °C; Storage: -20 ~ 60 °C
10.1inch LCM 1280x800 250 800:1 16.7M WLED EDP B101EAN01.8 LCD Display

B101EAN01.8 Customer Service Policy:


We are more than happy to answer any questions that you have, please contact with


1:Orders processed timely after the payment verification.


2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.


3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!


4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.


B101EAN01.8 Attention:


We recommend removal of your old screen prior to ordering.Please provide your LCD model and laptop model before purchasing.We need to reconfirm whether you purchase the correct model.

Compatible model will be sent! Maybe not the same model as in the title but they are 100% compatible!If you need an exact model, please contact us before purchasing.

Please confirm whether your LCD screen can be separated from the front cover plate of the notebook. If it can be separated, you can purchase a single LCD screen. If it cannot be separated, you need to purchase a LCD screen assembly with front cover.To avoid purchasing the wrong products, please confirm again whether you need a single LCD screen or an assembly.


B101EAN01.8 RETURN:


If you receive a damaged or wrong item , please contact us via message , we will arrange return immediately. Please do not leave negative feedback or open any cases before contacting us.

Return is accepted within 30 days after receiving of the item.

When doing the return , please pack the product safely like how we do in the original package. As the screens are very fragile.Please do not use other package.

Buyer is responsible for the return shipping cost in the cases of buyer purchasing wrong products , wrong size ,etc..


B101EAN01.8 Shipping:


All items will be shipped within 48 business hours upon receipt of payment (Except Saturdays and Sundays and holidays).


7-15 working days to USA,Ship by USPS with track number.
14-22 business days to UK Australia,Canada.


18-25 business days to Greece,Spain,Poland,Norway.


18-25 business days to Germany,Filand.Sweden,Malta.


20-25 business days to France, Czech. most of Europe.


30-40 business days to other countries(Brazil and Russia).


This is the normally around ship time.if your country strict customs and will cause delay.

We are not responsible for any custom delay or tax. Import taxes are not included in the item price or shipping fee.


B101EAN01.8 FAQ:


Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.


Q: Do you accept the sample order of B101EAN01.8 ?

A: Yes, Welcome !


Q: How long the warranty of B101EAN01.8 ?

A: 90 days .


Q: What happen if the B101EAN01.8 received can't work ?

A: Our B101EAN01.8 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.


B101EAN01.8 Shippment & Packing:
