Categories | Geomembrane Welding Machine |
---|---|
Brand Name: | Weldy |
Model Number: | WGW300 |
Certification: | CE , ISO |
Place of Origin: | China |
MOQ: | 1 SET |
Price: | Negotiable |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 100 SET/week |
Delivery Time: | 3-5 days after payment |
Packaging Details: | AL boxes |
Product name: | Geomembrane Welding Machine |
Input voltage: | 230V |
Application: | Wedge welder for geomembranes |
Power: | 1750KW |
Overlap width: | Max 150MM |
Welding speed: | 0.5-8.5m/min |
Heating Temprature: | 20-450 ℃ Adjustable |
Seam Width: | 12.5 mmx2, interior cavity 12mm |
Welding thickness: | 0.8-3.0MM |
Weight: | 20KG |
Company Info. |
HEBEI ZEMO TECHNOLOGY CO., LTD. |
Verified Supplier |
View Contact Details |
Product List |

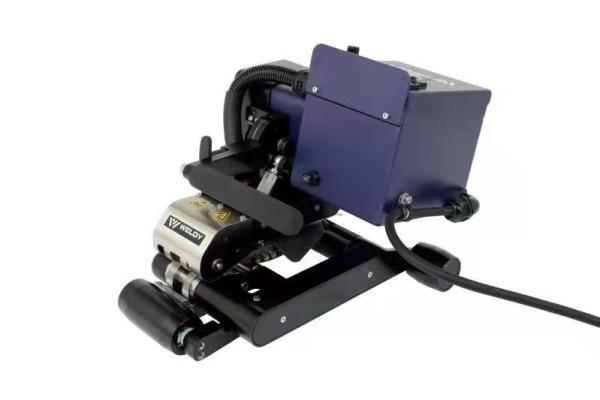

Geomembrane Welding Machine Specification
Product Name | Geomembrane Welding Machine | |
Model | WGW300 | |
Input Voltage | 230,50/60HZ | |
Power | 1750W | |
Wedge Size And Material | 80mm CU for HDPE/LDPE. PP | |
Welding Tracks(others one request) | 2x12MM, With Test Channel | |
Max. Welding Pressure | 1400N | |
Max.Overlap Width | 150MM | |
Motor Speed | 0.5-8.5M/Min | |
Weldable Geomembranes | HPDE 0.8-2.5mm LDPE/TPO/FPO/PVC 0.8-3.0MM ,Geomtexile ) (PVC With Steel Wedge Only | |
Max .Wedge Tem. | 450℃ | |
Country of Origin | Made in China | |
Net Weight | 15KG |
Geomembrane Welding Machine Features

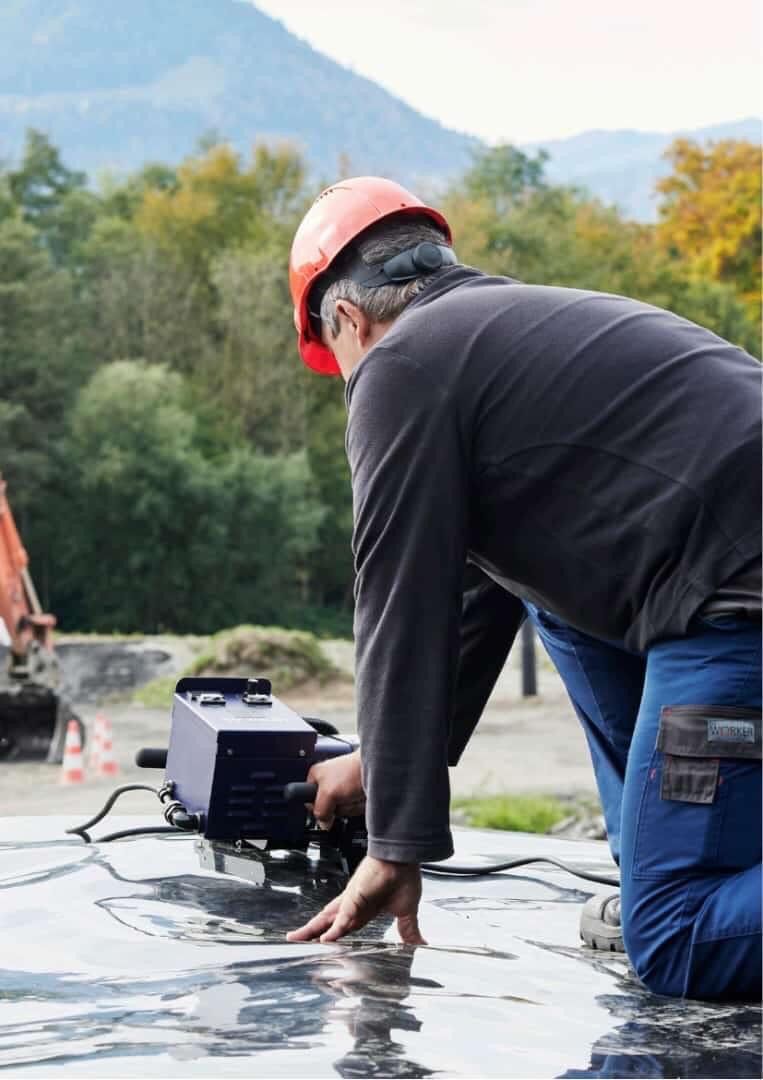

Geomembrane Weldng Machine Customer operation
All designed according to ISO21307:2011(E),ISO12176-1 and
DVS2207/1(08/2007)
International warranty: 24months.
Any parts broken or does not work under normal operating,we are
free to provide.
![]() |
