Textured Hdpe Geomembrane 1.0-2.5mm thick Sheet for Landfill or Pond Liner or Fish pond or Aquafarm

Categories	HDPE Geomembrane
Brand Name:	PioneerTEX
Model Number:	Composite Membrane
Certification:	ISO9001 and ISO14001
Place of Origin:	China
MOQ:	2000SQM
Price:	1.0-3.0 US$/SQM
Payment Terms:	L/C, T/T
Supply Ability:	2000sqm/day
Delivery Time:	2-3WEEKS
Packaging Details:	standard export packaging
Material:	HDPE
Width:	7.0mts max
Color:	Black or White
Thickness:	0.5-3.0mm
Name:	Textured Landfill Pond Liner ditch Lining Hdpe Geomembrane Sheet
Use:	Textured Landfill Pond Liner ditch Lining

Contact Now

Add to Cart

Company Info.

CHANGZHOU PIONEER TEXTILE TECHNOLOGY LTD

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Textured Hdpe Geomembrane 1.0-2.5mm thick Sheet for Landfill or Pond Liner or Fish pond or Aquafarm

Textured HDPE Geomembrane for waterproof landfill project,pond liner, ditch lining,slope protection,waste water treatmen

HDPE Geomembrane liner are made from polyethylene polymer materials that blow molding,its main function is to prevent the liquid leakage and gas volatile.According to the production of raw materials can divide into HDPE geomembrane liner and EVA geomembrane liner,etc.

Product Application

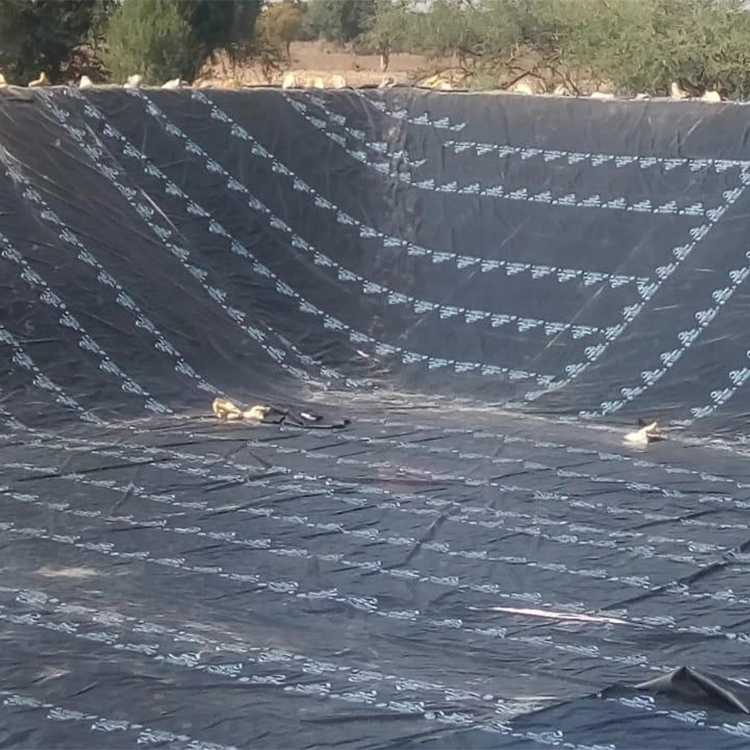

1.landfill,sewage or control the waste residue seashores seepage.

2.Lake dam,tailings dams,sewage dam and reservoir,channel,storage of liquid pools(pit,ore)

3.The subway ,tunnel,anti-seepage lining of basement and tunnel.

4.To control the roadbed and other foundation saline seepage.

TEXTURE HDPE GEOMEMBRANE
Property	Test Method	40 Mil 1.0mm	60 Mil 1.5mm	80 Mil 2.0mm	100 Mil 2.5mm
Thickness, mils	ASTM D 5199
minimum average		40	60	80	100
lowest individual reading		36	54	72	90
Sheet Density, g/cc	ASTM D 1505/D 792	0.94	0.94	0.94	0.94
Tensile Properties ¹	ASTM D 6693
1. Yield Strength, lb/ in		84	126	168	210
2. Break Strength, lb/ in		152	228	304	380
3. Yield Elongation, %		12	12	12	12
4. Break Elongation, %		700	700	700	700
Tear Resistance, lb	ASTM D 1004	28	42	56	70
Puncture Resistance, lb	ASTM D 4833	72	108	144	180
Stress Crack Resistance ², hrs	ASTM D 5397 (App.)	300	300	300	300
Carbon Black Content ³, %	ASTM D 1603	2.0 - 3.0	2.0 - 3.0	2.0 - 3.0	2.0 - 3.0
Carbon Black Dispersion ⁴	ASTM D 5596
Oxidate Induction Time (OIT)
Standard OIT, minutes	ASTM D 3895	100	100	100	100
Oven Aging at 85°C	ASTM D 5721
High Pressure OIT	ASTM D 5885	80	80	80	80
(% retained after 90 days)	ASTM D 5885	80	80	80	80
UV Resistance ⁵	GRI GM11
High Pressure OIT ⁶	ASTM D 5885	50	50	50	50
(% retained after 1600 hrs)	ASTM D 5885	50	50	50	50
Seam Properties	ASTM D 6392
Seam Properties	(@ 2 in/min)
1. Shear Strength, lb/ in		80	120	160	200
2. Peel Strength, lb/ in - Hot Wedge		60	91	121	151
- Extrusion Fillet		52	78	104	130
Roll Dimensions
1. Width (feet):		23	23	23	23
2. Length (feet)		750	500	375	300
3. Area (square feet):		17,250	11,500	8,625	6,900
4. Gross Weight (pounds, approx.)		3,470	3,470	3,470	3,470
