| Categories | Pneumatic Air Cylinder |
|---|---|
| Place of Origin: | Ningbo China(Mainland) |
| Brand Name: | FLUIDAC or OEM |
| Certification: | ISO9001 |
| Model Number: | DSNU40-50-PPV-A |
| MOQ: | 5 piece |
| Price: | USD5- |
| Packaging Details: | Boxes, Cartons,Wooden cases,Pallets |
| Delivery Time: | Within 20 days after receiving payment or deposit |
| Payment Terms: | TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal |
| Supply Ability: | 10000 Pieces Per month |
| Bore size: | 10mm |
| Piston rod: | #45(ASTM-1045) steel chrome-plated |
| Motion Pattern: | Double action |
| Operating pressure range: | 0.1~1.0MPa |
| Operating Speed: | 50~750mm/s |
| Pressure Endurance: | 1.5MPa |
| Product name: | Pneumatic Air Cylinder |
| Working Medium: | Filtered compressed air |
| Company Info. |
| FENGHUA FLUID AUTOMATIC CONTROL CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
10mm DSNU Mini Festo Pneumatic Air Cylinder , Stainless Steel Barrel
ISO6432 standard stainless steel mini DSNU double acting Pneumatic air cylinder Bore size 8mm-63mm e.g. DSNU40-50-PPV-A with magnet and adjustable air buffer Festo crossover
Quick Detail:
* ISO 6432 standard mini pneumatic air cylinder
* With magnet,air buffer adjustable or rubber cushion for choice
* Stainless steel barrel,Aluminum tube can be optional
* Piston rod #45(ASTM-1045) steel chrome-plated
* Stainless steel piston rod is available
* With guide plate type available
* With self-lubricating bearing,lubrication free
* Bore size 8mm, 10mm,12mm,16mm,20mm,25mm,32mm,40mm,50mm,63mm
* DSNU-KP air lock type available
* Cylinder kits and accessories available
Specifications:
DSNU | 50 | 100 | PPV | A | LB |
DSNU :Double acting | Bore Size | Stroke | With adjustable air buffer on both ends | A:With Magnet | Mounting Accessories |
8:8mm | Blank:Basic type | ||||
10:10mm | LB:Foot mounting front and rear | ||||
12:12mm | FA:Front flange | ||||
16:16mm | U:U type clevis | ||||
DSN:Single acting | 20:20mm | Blank:Rubber buffer | Blank: Without magnet | SDB:Back cap swinging type | |
25:25mm |
| ||||
32:32mm | |||||
40:40mm | |||||
50:50mm | |||||
63:63mm |
SPECIFICATION | ||||||||||
Bore size(mm) | 8 | 10 | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 |
working Medium | Filtered compressed air | |||||||||
Motion Pattern | Double action/Single acting | |||||||||
Pressure Endurance | 1.5MPa | |||||||||
Operating pressure range | 0.1~1.0MPa | |||||||||
Ambient Temperature | -5~70ºC | |||||||||
Buffer cushioning | Rubber Buffer only | Air buffer on both ends available for option | ||||||||
Operating Speed | 50~750mm/s | |||||||||
Port size | M5 | M5 | M5 | M5 | G1/8 | G1/8 | G1/8 | G1/8 | G1/4 | G3/8 |

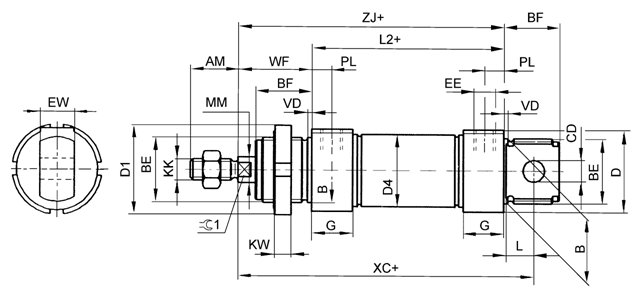

Bore size | AM | B1f8 | BE | ΦCD | ΦDh9 | ΦD5 | ΦD6 | EE | EW | J1 | J2 | J3 | J4 | KK | KV | KW | L | L1 | L2 | L3 | L4 | L5 | L15 | L16 |
8 | 12 | - | M12×1.25 | 4 | 15 | 12 | 9.3 | M5 | 8 | 20.4 | 16.5 | 23.2 | 13.9 | M4 | 19 | 6 | 6 | 78 | 22 | 34 | 12 | 10 | 78 | 62 |
10 | 12 | - | M12×1.25 | 4 | 15 | 12 | 11.3 | M5 | 8 | 22 | 18.2 | 25.9 | 13.8 | M4 | 19 | 6 | 6 | 78 | 22 | 34 | 12 | 10 | 78 | 62 |
12 | 16 | 5.5 | M16×1.5 | 6 | 20 | 16 | 13.3 | M5 | 12 | 22 | 20 | 28.6 | 11 | M6 | 24 | 8 | 9 | 89 | 28 | 38 | 17 | 15 | 94 | 72 |
16 | 16 | 5.5 | M16×1.5 | 6 | 20 | 16 | 17.3 | M5 | 12 | 22.5 | 22.5 | 33.2 | 11 | M6 | 24 | 8 | 9 | 95 | 28 | 44 | 17 | 15 | 100 | 78 |
20 | 20 | 7 | M22×1.5 | 8 | 27 | 22 | 21.3 | G1/8 | 16 | 26.5 | 22.5 | 35.3 | 13 | M8 | 32 | 11 | 12 | 112 | 32 | 51.6 | 20 | 18 | 116 | 92 |
25 | 22 | 9 | M22×1.5 | 8 | 27 | 22 | 26.5 | G1/8 | 16 | 31.5 | 25 | 40.2 | 16 | M10× 1.25 | 32 | 11 | 12 | 119.5 | 36 | 53.1 | 22 | 20 | 125.5 | 97.5 |
